Foot Master

UGXT-300-ASF/ARF/BSF-MCQ

UGXT-300-ASF/ARF/BSF-MCQ

SKU:UGXT-300-ASF-ARF-BSF-MCQ-HEAVY-DUTY

Enquire Now
* Brackets: Forged steel plate, thrust bearing and taper roller bearing in the swivel head to optimize heavy load, grease nipple, strong welded steel frame, hand-operated wheel brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), four ball bearings

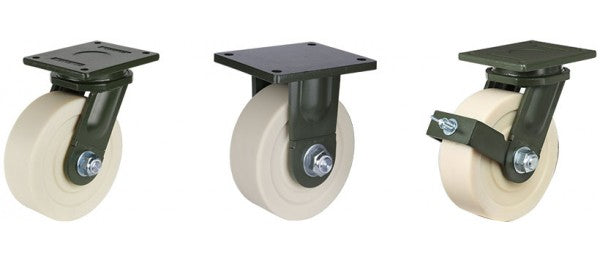

● Model
ㆍUGXT-300-ASF-MCQ(Swivel)
ㆍUGXT-300-ARF-MCQ(Rigid)
ㆍUGXT-300-BSF-MCQ(Swivel with brake)
View full details
Wheel Diameter300 mm
Width of Tread100 mm
Hardness of Tread80 Shore D

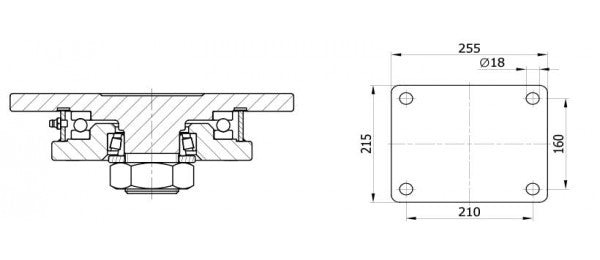

Size of Plate255 x 215 mm
Plate Hole Centers210 x 160 mm
Plate Hole18 mm
Offset90 mm
Overall Height380 mm
Temperature-10 ~ 90 ℃
Load Capacity / 1pcs8,000 kg
Load Capacity / 4pcs24,000 kg
