Foot Master

UGXT-250-ASF/ARF/BSF-HUQ

UGXT-250-ASF/ARF/BSF-HUQ

SKU:UGXT-250-ASF-ARF-BSF-HUQ-HEAVY-DUTY

Enquire Now
* Brackets: Forged steel plate, thrust bearing and taper roller bearing in the swivel head to optimize heavy load, grease nipple, strong welded steel frame, hand-operated wheel brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A95), aluminum core, Four ball bearings

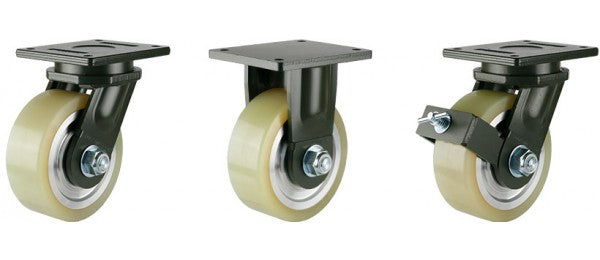

● Model
ㆍUGXT-250-ASF-HUQ(Swivel)
ㆍUGXT-250-ARF-HUQ(Rigid)
ㆍUGXT-250-BSF-HUQ(Swivel with brake)
View full details
Wheel Diameter250 mm
Width of Tread100 mm
Hardness of Tread95 Shore A

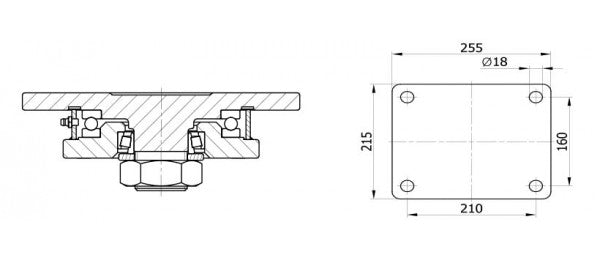

Size of Plate255 x 215 mm
Plate Hole Centers210 x 160 mm
Plate Hole18 mm
Offset80 mm
Overall Height330 mm
Temperature-10 ~ 90 ℃
Load Capacity / 1pcs2,900 kg
Load Capacity / 4pcs8,700 kg
