Trolley / Workbench Floor Lock (100mm Castors) Adjustable Height Range 125mm – 155mm – 200kg Capacity

–  These locks are designed to prevent trolley movement with 2 x fixed castors and 2 x swivel castors

– Non skid molded rubber brake shoe creates a secure force against the floor

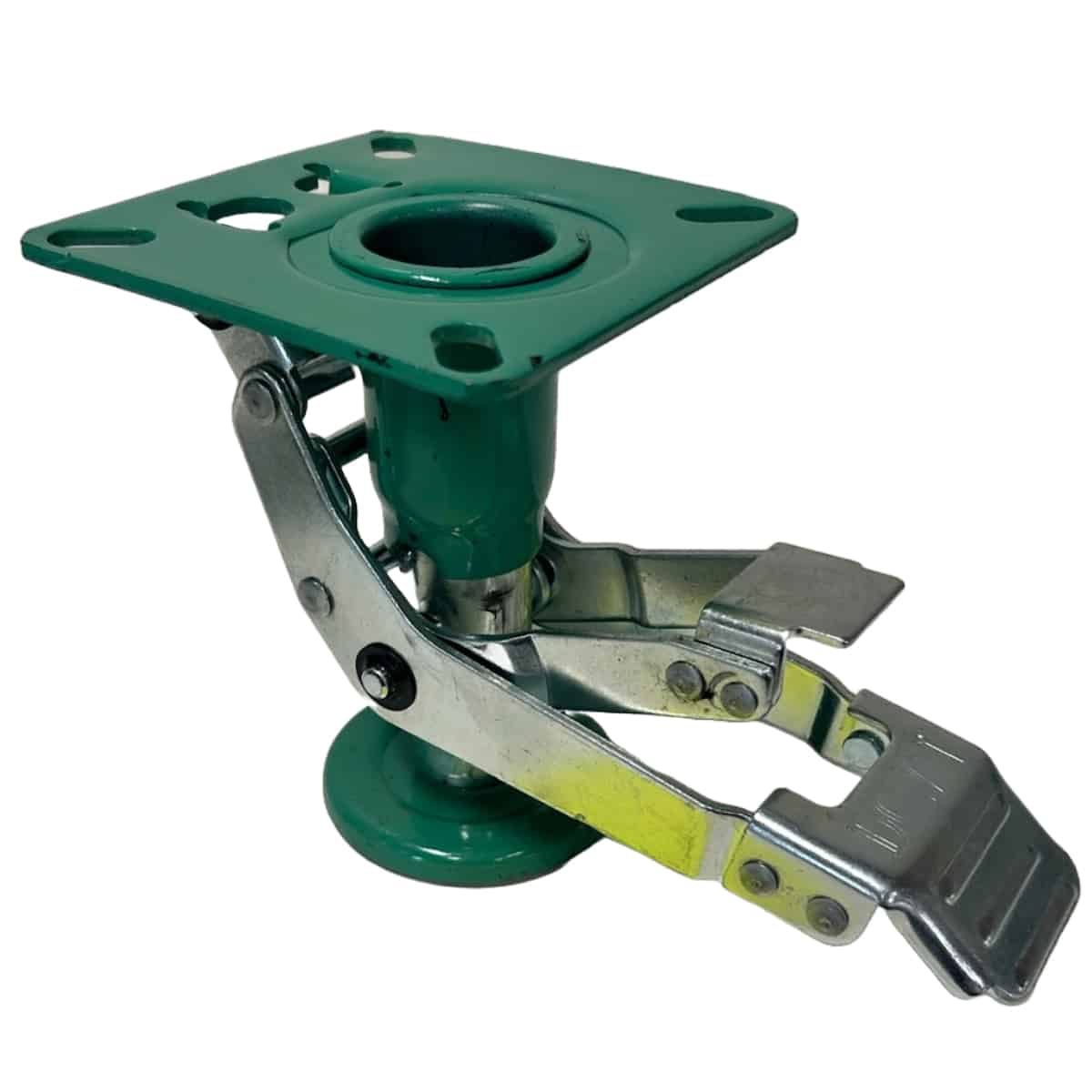

–  Floor locks are placed between the swivel castors at the push end of the trolley, lifts that end off ground immobilising the trolley

– Pedal ON / Pedal OFF operation, trolley is stable if front end has fixed castors fitted

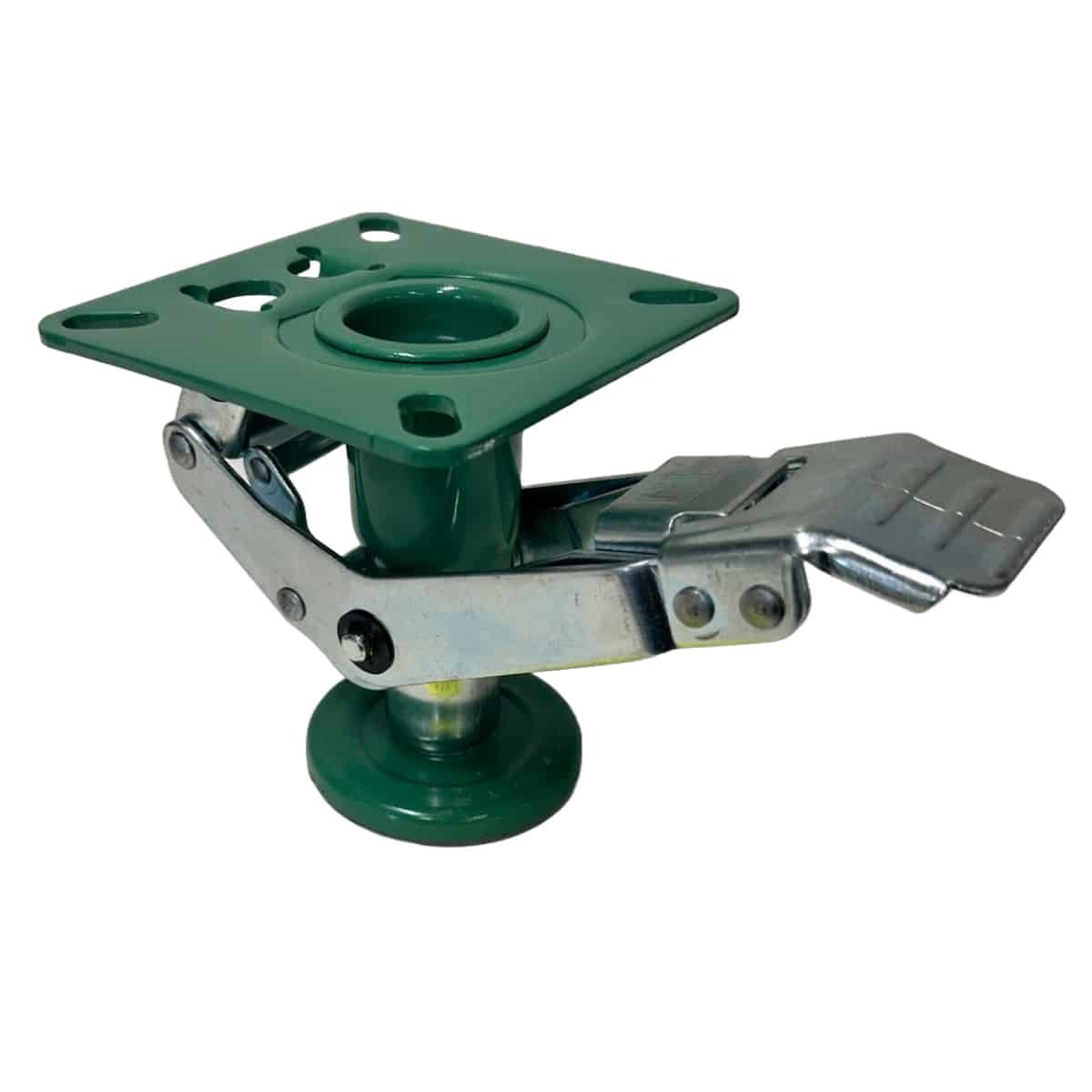

– Floor lock retracts when inner release pedal is pushed down

– It is essential to mount the lock at a height that gives 8mm off lift, more lift can make the trolley unstable, while insufficient lift may not lock trolley adequately
