• Square Threaded Tube End (Stainless Steel Thread) 25x25mm M12 (250kg Capacity)

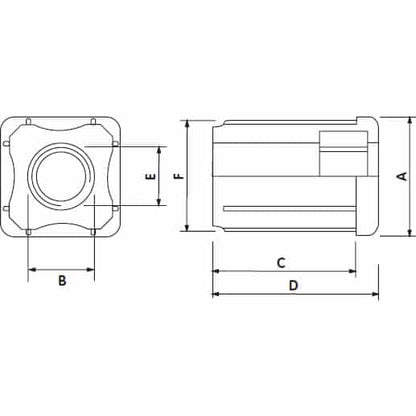

  • Square Threaded Tube End Drawing
1 2

Tente

Square Threaded Tube End (Stainless Steel Thread) 25x25mm M12 (250kg Capacity)

Square Threaded Tube End (Stainless Steel Thread) 25x25mm M12 (250kg Capacity)

AFPS25X12

Enquire Now

– Threaded tube ends are insets are used in conjunction with A-Just-A-Feet

– Tube ends suit round or square tubes in most popular sizes, in stainless steel thread or mild steel thread

– The external profile fits inside tubing and comes with a threaded internal portion to mount levelling feet

– Optional A-Just-A-Foot inserts are designed especially so they can be screwed into the threaded tube ends

– Not recommended for use with Castors (see Long Thread range for castor use)



View full details
Tube End Face Size mm (A)

25

Thread Size mm (B)

M12

Tube End Int Length mm (C)

39

Tube End Overall Length mm (D)

44

Tube End Internal Width mm (F)

23.5
