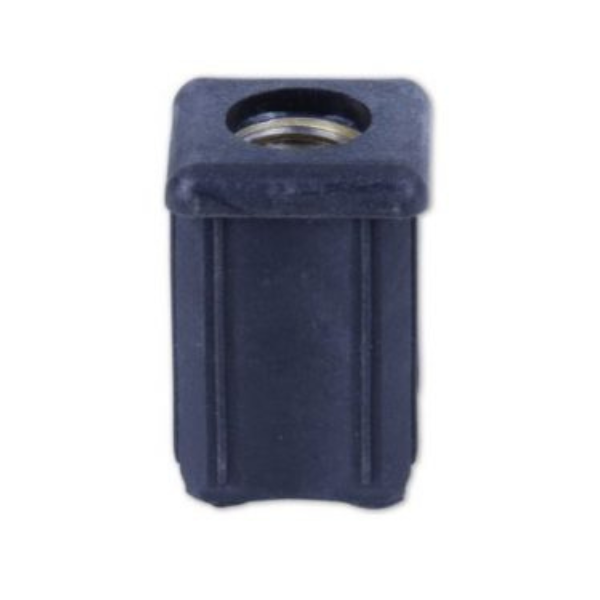

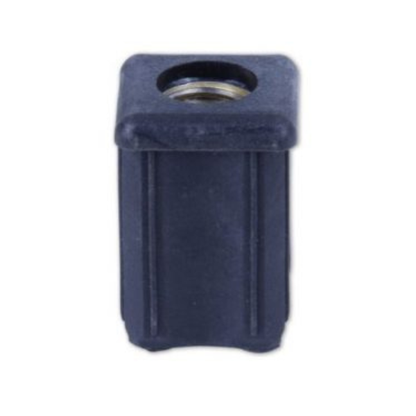

Square Threaded Tube End

Available with Zinc Plated Mild Steel Thread (10 Series) OR 304 Stainless Steel Thread (11 Series).

View full details

Square Threaded Tube End – Zinc Plated Mild Steel Thread (10 Series)

– (G) is recommended ID tube sizes

Part No. Size A B C D E F G Rating
10/19/M8 19xM8 19 M8 22.5 24.8 9 16 15-16 50kg
10/25/M8 25xM8 25 M8 39 44 10 23.5 22-23 250kg
10/25/M10 25xM10 25 M10 39 44 11 23.5 22-23 250kg
10/25/M12 25xM12 25 M12 39 44 13 23.5 22-23 250kg
10/25/M16 25xM16 25 M16 39 44 16.5 23.5 22-23 250kg
10/30/M8 30xM8 30 M8 39 45 10 26.8 26-27 350kg
10/30/M10 30xM10 30 M10 39 45 11 26.8 26-27 350kg
10/30/M12 30xM12 30 M12 39 45 13 26.8 26-27 350kg
10/30/M16 30xM16 30 M16 39 45 16.5 26.8 26-27 350kg
10/32/M8 32xM8 32 M8 39 45 10 30 28-29 350kg
10/32/M10 32xM10 32 M10 39 45 11 30 28-29 350kg
10/32/M12 32xM12 32 M12 39 45 13 30 28-29 350kg
10/32/M16 32xM16 32 M16 39 45 16.5 30 28-29 350kg
10/35/M8 35xM8 35 M8 39 45 11 32.2 31-32 350kg
10/35/M10 35xM10 35 M10 39 45 11 32.2 31-32 400kg
10/35/M12 35xM12 35 M12 39 45 13 32.2 31-32 400kg
10/35/M16 35xM16 35 M16 39 45 16.5 32.2 31-32 400kg
10/38/M8 38xM8 38 M8 41 45 10 36 35-36 500kg
10/38/M10 38xM10 38 M10 41 45 12 36 35-36 500kg
10/38/M12 38xM12 38 M12 41 45 13 36 35-36 500kg
10/38/M16 38xM16 38 M16 41 45 18 36 35-36 500kg
10/40/M10 40xM10 40 M10 39 45 11 36.8 36-37 350kg
10/40/M12 40xM12 40 M12 39 45 13 36.8 36-37 350kg
10/40/M16 40xM16 40 M16 39 45 16.5 36.8 36-37 350kg
10/51/M10 51xM10 51 M10 39 47 11 48 47-48 750kg
10/51/M12 51xM12 51 M12 39 47 13 48 47-48 750kg
10/51/M16 51xM16 51 M16 39 47 18 48 47-48 750kg

Square Threaded Tube End – 304 Stainless Steel (11 Series)

– (G) is recommended ID tube sizes

Part No. Size A B C D E F G Rating
11/19/M8 19xM8 19 M8 22.5 24.8 9 16 15-16 50kg
11/25/M8 25xM8 25 M8 39 44 10 23.5 22-23 250kg
11/25/M10 25xM10 25 M10 39 44 11 23.5 22-23 250kg
11/25/M12 25xM12 25 M12 39 44 13 23.5 22-23 250kg
11/25/M16 25xM16 25 M16 39 44 16.5 23.5 22-23 250kg
11/30/M8 30xM8 30 M8 39 45 10 26.8 26-27 350kg
11/30/M10 30xM10 30 M10 39 45 11 26.8 26-27 350kg
11/30/M12 30xM12 30 M12 39 45 13 26.8 26-27 350kg
11/30/M16 30xM16 30 M16 39 45 16.5 26.8 26-27 350kg
11/32/M8 32xM8 32 M8 39 45 10 30 28-29 350kg
11/32/M10 32xM10 32 M10 39 45 11 30 28-29 350kg
11/32/M12 32xM12 32 M12 39 45 13 30 28-29 350kg
11/32/M16 32xM16 32 M16 39 45 16.5 30 28-29 350kg
11/35/M8 35xM8 35 M8 39 45 11 32.2 31-32 350kg
11/35/M10 35xM10 35 M10 39 45 11 32.2 31-32 400kg
11/35/M12 35xM12 35 M12 39 45 13 32.2 31-32 400kg
11/35/M16 35xM16 35 M16 39 45 16.5 32.2 31-32 400kg
11/38/M8 38xM8 38 M8 41 45 10 36 35-36 500kg
11/38/M10 38xM10 38 M10 41 47 17.7 36 35-36 500kg
11/38/M12 38xM12 38 M12 41 47 13 36 35-36 500kg
11/38/M16 38xM16 38 M16 41 47 18 36 35-36 500kg
11/40/M10 40xM10 40 M10 39 45 11 36.8 36-37 500kg
11/40/M12 40xM12 40 M12 39 45 13 36.8 36-37 500kg
11/40/M16 40xM16 40 M16 39 45 16.5 36.8 36-37 500kg
11/51/M10 51xM10 51 M10 39 45 11 48 47-48 750kg
11/51/M12 51xM12 51 M12 39 45 13 48 47-48 750kg
11/51/M16 51xM16 51 M16 39 45 18 48 47-48 750kg
11/51/M20 51xM20 51 M20 39 45 18 48 47-48 750kg
