Foot Master

SPLM-100-ASF/ARF/BSF-NYP

SPLM-100-ASF/ARF/BSF-NYP

SKU:SPLM-100-ASF-ARF-BSF-NYP-STAINLESS-STEEL

Enquire Now
* Brackets: Pressed stainless steel plate, double ball bearing in the swivel head, strong integrated pressed stainless steel frame, dust protection cover in the swivel head, total-lock steel top brake system which is applied in wheel and swivel head simultaneously, bolted wheelaxle structure, completely corrosion-resistant components applied.
* Surface Treatment : Barrel Polishing
* Wheel: High-Performance Nylon(Shore D70), Plain Bearing

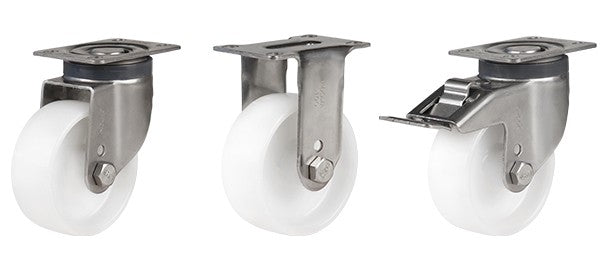

● Model
ㆍSPLM-100-ASF-NYP(Swivel)
ㆍSPLM-100-ARF-NYP(Rigid)
ㆍSPLM-100-BSF-NYP(Swivel with brake)
View full details
Wheel Diameter100 mm
Width of Tread40 mm
Hardness of Tread

70 Shore D

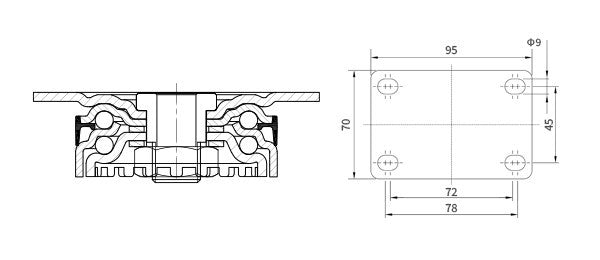

Size of Plate95 x 70 mm
Plate Hole Centers78 x 45 or 72 x 45 mm
Plate Hole9 mm
Offset36 mm
Overall Height135 mm
Temperature-10 ~ 90 ℃
Load Capacity / 1pcs250 kg
Load Capacity / 4pcs750 kg
