Foot Master

SGL-75-ASF/ARF/BSF-TUN

Name: SGL-75-ASF/ARF/BSF-TUN
Brand: Foot Master
SKU: SGL-75-ASF-ARF-BSF-TUN-STAINLESS-STEEL
Availability: InStock

SGL-75-ASF/ARF/BSF-TUN

SKU:SGL-75-ASF-ARF-BSF-TUN-STAINLESS-STEEL

Enquire Now

* Brackets: Pressed stainless steel plate, double ball bearing in the swivel head, strong integrated pressed stainless steel frame, dust protection cover in the swivel head, smooth-operating top brake system, bolted wheel axle structure, completely corrosion-resistant components applied
* Wheel: Injected polyurethane(Shore A92), PP core, no bearing

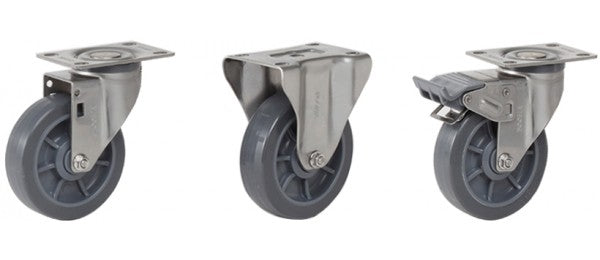

● Model
ㆍSGL-75-ASF-TUN(Swivel)
ㆍSGL-75-ARF-TUN(Rigid)
ㆍSGL-75-BSF-TUN(Swivel with brake)

View full details

Wheel Diameter	75 mm
Width of Tread	25 mm
Hardness of Tread	92 Shore A

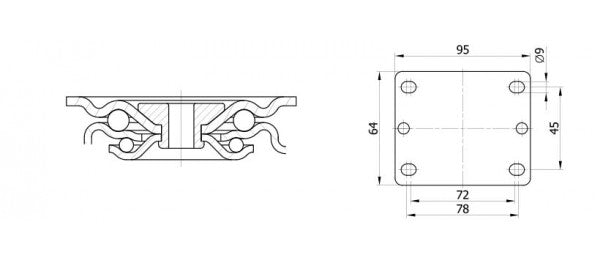

Size of Plate	95 x 64 mm
Plate Hole Centers	78 x 45 or 72 x 45 mm
Plate Hole	9 mm
Offset	40 mm
Overall Height	105 mm
Temperature	-10 ~ 90 ℃
Load Capacity / 1pcs	65 kg
Load Capacity / 4pcs	195 kg
