Foot Master

SGL-75-ASF/ARF/BSF-HRSS

SGL-75-ASF/ARF/BSF-HRSS

SKU:SGL-75-ASF-ARF-BSF-HRSS-STAINLESS-STEEL

Enquire Now
* Brackets: Pressed stainless steel plate, double ball bearing in the swivel head, strong integrated pressed stainless steel frame, dust protection cover in the swivel head, smooth-operating top brake system, bolted wheel axle structure, completely corrosion-resistant components applied
* Wheel: Injected rubber(Shore A85), PP core, one stainless steel ball bearing

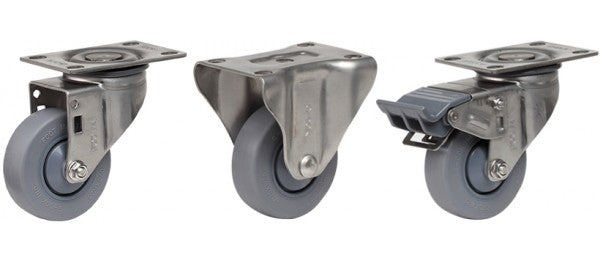

● Model
ㆍSGL-75-ASF-HRSS(Swivel)
ㆍSGL-75-ARF-HRSS(Rigid)
ㆍSGL-75-BSF-HRSS(Swivel with brake)
View full details
Wheel Diameter75 mm
Width of Tread25 mm
Hardness of Tread85 Shore A

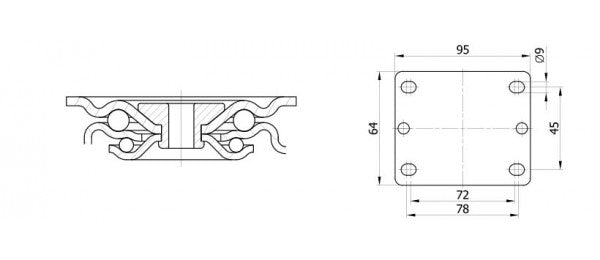

Size of Plate95 x 64 mm
Plate Hole Centers78 x 45 or 72 x 45 mm
Plate Hole9 mm
Offset40 mm
Overall Height105 mm
Temperature-10 ~ 90 ℃
Load Capacity / 1pcs65 kg
Load Capacity / 4pcs195 kg
