Foot Master

SGL-75-ASF/ARF/BSF-EUSS

SGL-75-ASF/ARF/BSF-EUSS

SKU:SGL-75-ASF-ARF-BSF-EUSS-NOISE-FREE-ELASTIC

Enquire Now
* Brackets: Pressed stainless steel plate, double ball bearing in the swivel head, strong integrated pressed stainless steel frame, dust protection cover in the swivel head, smooth-operating top brake system, bolted wheel axle structure, completely corrosion-resistant components applied
* Wheel: High elasticity polyurethane(Shore A80), PC core, 1 Stainless Steel Ball Bearing

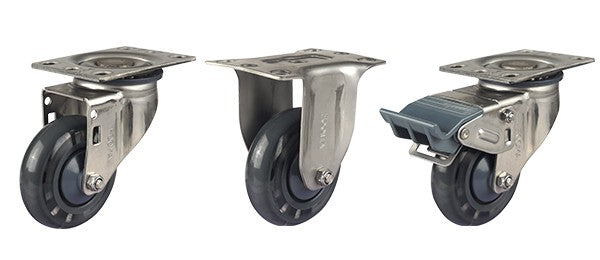

● Model
ㆍSGL-75-ASF-EUSS(Swivel)
ㆍSGL-75-ARF-EUSS(Rigid)
ㆍSGL-75-BSF-EUSS(Swivel with brake)
View full details
Wheel Diameter75 mm
Width of Tread25 mm
Hardness of Tread

80 Shore A

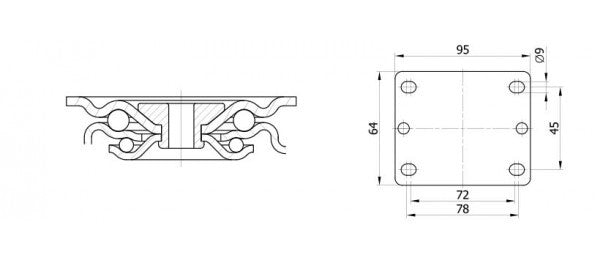

Size of Plate95 x 64 mm
Plate Hole Centers78 x 45 or 72 x 45 mm
Plate Hole9 mm
Offset40 mm
Overall Height105 mm
Temperature-10 ~ 90 ℃
Load Capacity / 1pcs65 kg
Load Capacity / 4pcs195 kg
