Foot Master

SGL-125-ASF/ARF/BSF-HRSS

SGL-125-ASF/ARF/BSF-HRSS

SKU:SGL-125-ASF-ARF-BSF-HRSS-STAINLESS-STEEL

Enquire Now
* Brackets: Pressed stainless steel plate, double ball bearing in the swivel head, strong integrated pressed stainless steel frame, dust protection cover in the swivel head, smooth-operating top brake system, bolted wheel axle structure, completely corrosion-resistant components applied
* Wheel: Injected rubber(Shore A85), PP core, one stainless steel ball bearing

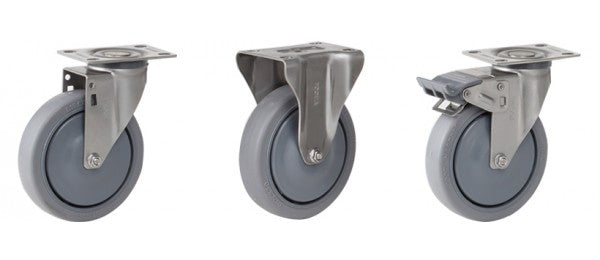

● Model
ㆍSGL-125-ASF-HRSS(Swivel)
ㆍSGL-125-ARF-HRSS(Rigid)
ㆍSGL-125-BSF-HRSS(Swivel with brake)
View full details
Wheel Diameter125 mm
Width of Tread30 mm
Hardness of Tread85 Shore A

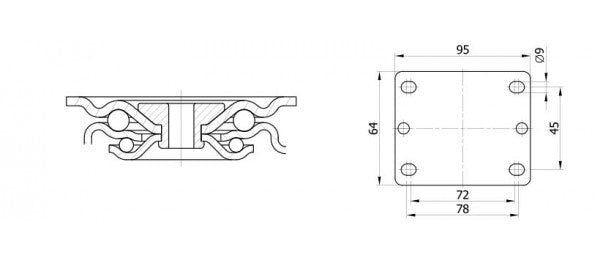

Size of Plate95 x 64 mm
Plate Hole Centers78 x 45 or 72 x 45 mm
Plate Hole9 mm
Offset35 mm
Overall Height157 mm
Temperature-10 ~ 90 ℃
Load Capacity / 1pcs100 kg
Load Capacity / 4pcs300 kg
