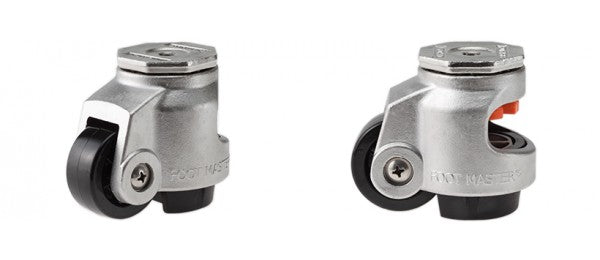

Foot Master

SGDN-80-S-NYN

SGDN-80-S-NYN

SKU:SGDN-80-S-NYN-STAINLESS-STEEL

Enquire Now
* Brackets: Stainless forged steel plate and stainless casting frame, double ball bearing with hardened stainless steel bearing seats in the swivel head, height adjustment with integrated orange handle or spanner, anti-vibration NBR pad, bolted wheel axle structure, completely corrosion-resistant components applied
* Surface Treatment: Electrolytic polishing
* Wheel: Nylon66(Shore D70), no bearing

● Model
ㆍSGDN-80-S-NYN
View full details
Wheel Diameter63 mm
Width of Tread28 mm
Hardness of Tread70 Shore D
Center BoltM12 x 1.75P
Bolt Length16 mm
Leveling Extent15 mm
Offset46 mm
Overall Height103 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs550 kg
Load Capacity / 4pcs1,100 kg
