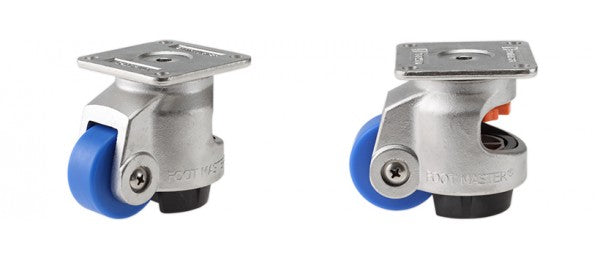

Foot Master

SGDN-80-F-MCN

SGDN-80-F-MCN

SKU:SGDN-80-F-MCN-STAINLESS-STEEL

Enquire Now
* Brackets: Stainless forged steel plate and stainless casting frame, double ball bearing with hardened stainless steel bearing seats in the swivel head, height adjustment with integrated orange handle or spanner, anti-vibration NBR pad, bolted wheel axle structure, completely corrosion-resistant components applied
* Surface Treatment: Electrolytic polishing
* Wheel: MC nylon(Shore D80), no bearing

● Model
ㆍSGDN-80-F-MCN
View full details
Wheel Diameter62 mm
Width of Tread28 mm
Hardness of Tread80 Shore D
Size of Plate90 x 90 mm
Plate Hole Centers70 x 70 mm
Plate Hole9 mm
Leveling Extent15 mm
Offset46 mm
Overall Height103 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs550 kg
Load Capacity / 4pcs1,100 kg
