Foot Master

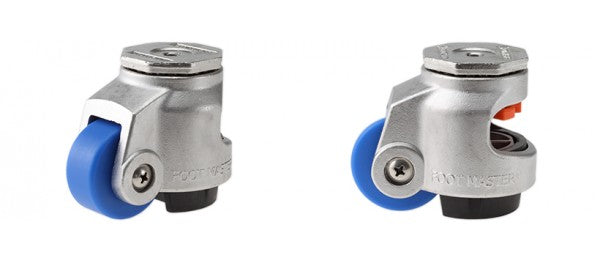

SGDN-60-S-MCN

SGDN-60-S-MCN

SKU:SGDN-60-S-MCN-STAINLESS-STEEL

Enquire Now
* Brackets: Stainless forged steel plate and stainless casting frame, double ball bearing with hardened stainless steel bearing seats in the swivel head, height adjustment with integrated orange handle or spanner, anti-vibration NBR pad, bolted wheel axle structure, completely corrosion-resistant components applied
* Surface Treatment: Electrolytic polishing
* Wheel: MC nylon(Shore D80), no bearing

● Model
ㆍSGDN-60-S-MCN
View full details
Wheel Diameter49 mm
Width of Tread25 mm
Hardness of Tread80 Shore D
Center BoltM12 x 1.75P
Bolt Length18 mm
Leveling Extent10 mm
Offset38 mm
Overall Height82 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs280 kg
Load Capacity / 4pcs560 kg
