Foot Master

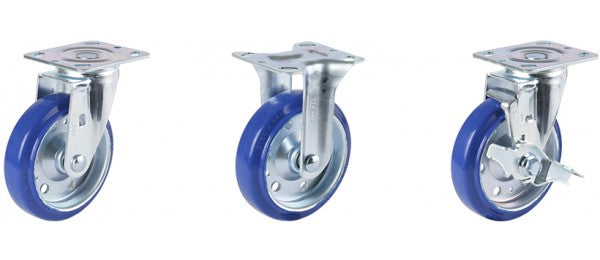

RT3-150-ASF/ARF/BSF-MUID

RT3-150-ASF/ARF/BSF-MUID

RT3-150-ASF-ARF-BSF-MUID-MEDIUM-DUTY

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, strong integrated pressed steel frame, smooth-operating side brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Cast polyurethane(Shore A95), pressed steel core, one special bearing

● Model
ㆍRT3-150-ASF-MUID(Swivel)
ㆍRT3-150-ARF-MUID(Rigid)
ㆍRT3-150-BSF-MUID(Swivel with brake)
View full details

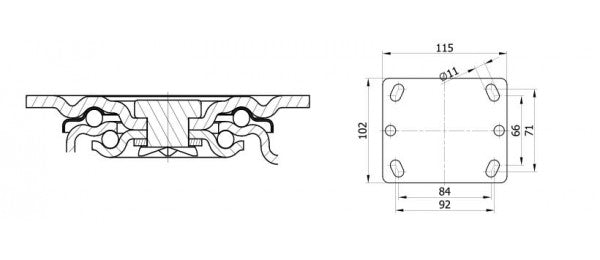

Wheel Diameter150 mm
Width of Tread45 mm
Hardness of Tread95 Shore A
Size of Plate115 x 102 mm
Plate Hole Centers92 x 66 or 84 x 71 mm
Plate Hole11 mm
Offset40 mm
Overall Height190 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs280 kg
Load Capacity / 4pcs840 kg
