| Wheel Diameter | 150 mm |
| Width of Tread | 45 mm |
| Hardness of Tread | 95 Shore A |

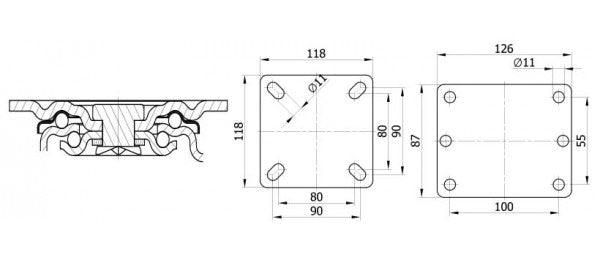

| Size of Plate | [SF] 118 x 118, [RF] 126 x 87 mm |
| Plate Hole Centers | [SF] 90 x 90 or 80 x 80 [RF] 100 x 55 mm |
| Plate Hole | 11 mm |
| Offset | 40 mm |
| Overall Height | 198 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 320 kg |
| Load Capacity / 4pcs | 960 kg |
