Foot Master

RT1-150-ASF/ARF/BSF-MUPD

RT1-150-ASF/ARF/BSF-MUPD

RT1-150-ASF-ARF-BSF-MUPD-MEDIUM-DUTY

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, strong integrated pressed steel frame, smooth-operating side brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Cast polyurethane(Shore A95), pressed steel core, two ball bearings

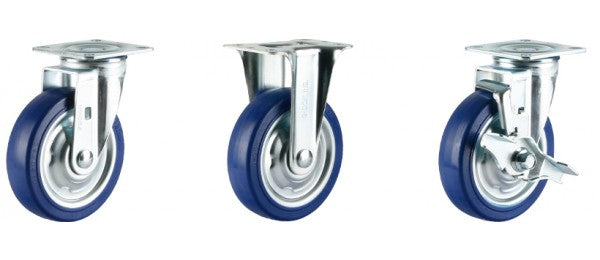

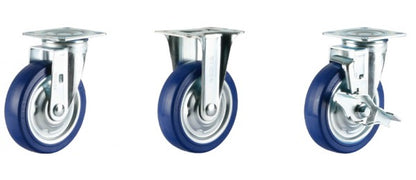

● Model
ㆍRT1-150-ASF-MUPD(Swivel)
ㆍRT1-150-ARF-MUPD(Rigid)
ㆍRT1-150-BSF-MUPD(Swivel with brake)
View full details
Wheel Diameter150 mm
Width of Tread40 mm
Hardness of Tread95 Shore A

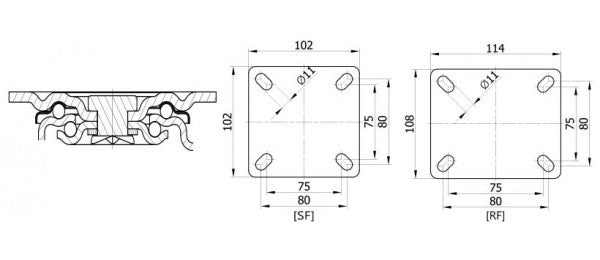

Size of Plate

[SF] 102 x 102 , [RF] 108 x 114 mm

Plate Hole Centers

80 x 80 or 75 x 75 mm

Plate Hole11 mm
Offset40 mm
Overall Height190 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs350 kg
Load Capacity / 4pcs1,050 kg
