Foot Master

PMW-150-ASF/ARF/BSF-MCD

PMW-150-ASF/ARF/BSF-MCD

PMW-150-ASF-ARF-BSF-MCD-MEDIUM-DUTY

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, strong welded steel frame, smooth-operating side brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings

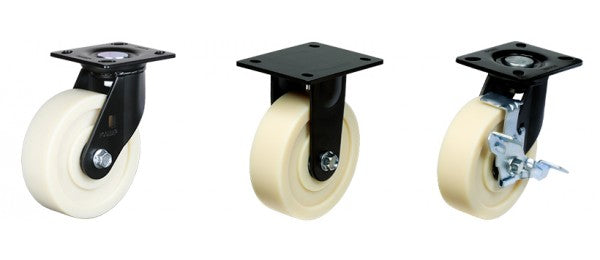

● Model
ㆍPMW-150-ASF-MCD(Swivel)
ㆍPMW-150-ARF-MCD(Rigid)
ㆍPMW-150-BSF-MCD(Swivel with brake)
View full details

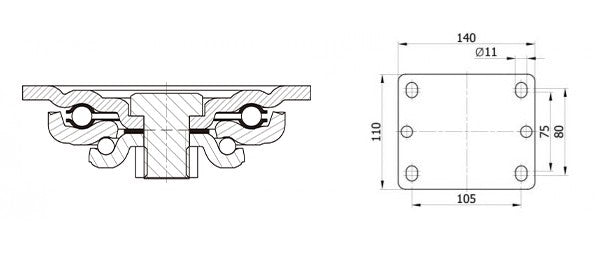

Wheel Diameter150 mm
Width of Tread48 mm
Hardness of Tread80 Shore D
Size of Plate140 x 110 mm
Plate Hole Centers105 x 80 or 105 x 75 mm
Plate Hole11 mm
Offset50 mm
Overall Height190 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs450 kg
Load Capacity / 4pcs1,350 kg
