Foot Master

PMW-130-ASF/ARF/BSF-NYD

PMW-130-ASF/ARF/BSF-NYD

PMW-130-ASF-ARF-BSF-NYD-MEDIUM-DUTY

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, strong welded steel frame, smooth-operating side brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: High-Performance Nylon(Shore D70), two ball bearings

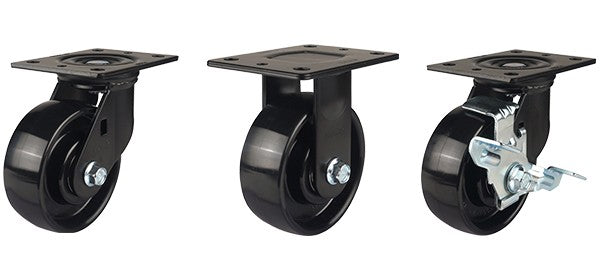

● Model
ㆍPMW-130-ASF-NYD(Swivel)
ㆍPMW-130-ARF-NYD(Rigid)
ㆍPMW-130-BSF-NYD(Swivel with brake)
View full details
Wheel Diameter130 mm
Width of Tread48 mm
Hardness of Tread70 Shore D

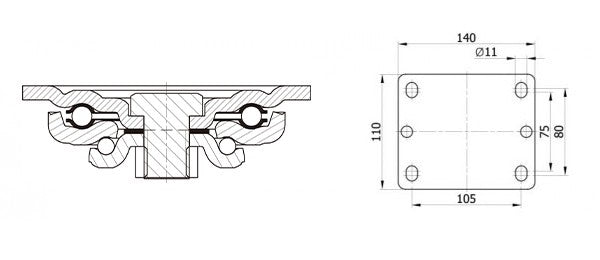

Size of Plate140 x 110 mm
Plate Hole Centers105 x 80 or 105 x 75 mm
Plate Hole11 mm
Offset50 mm
Overall Height162 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs400 kg
Load Capacity / 4pcs1,200 kg
