Foot Master

PLM-100-ASF/ARF/BSF-GUD

PLM-100-ASF/ARF/BSF-GUD

SKU:PLM-100-ASF-ARF-BSF-GUD-NOISE-FREE-ELASTIC

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, strong integrated pressed steel frame, total-lock steel top brake system which is applied in wheel and swivel head simultaneously, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Cast polyurethane(Shore A80), aluminum core, two ball bearings

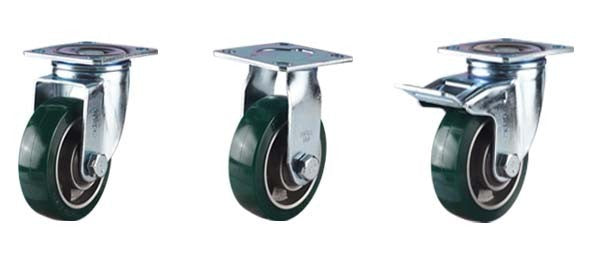

● Model
ㆍPLM-100-ASF-GUD(Swivel)
ㆍPLM-100-ARF-GUD(Rigid)
ㆍPLM-100-BSF-GUD(Swivel with brake)
View full details
Wheel Diameter100 mm
Width of Tread35 mm
Hardness of Tread80 Shore A

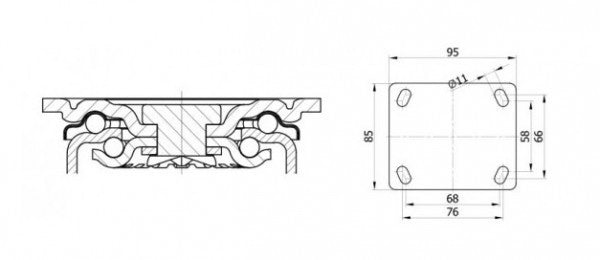

Size of Plate95 x 85 mm
Plate Hole Centers

76 x 58 mm or 68 x 66mm

Plate Hole11 mm
Offset35 mm
Overall Height135 mm
Temperature-10 ~ 90 ℃
Load Capacity / 1pcs200 kg
Load Capacity / 4pcs600 kg
