Foot Master

PL-75-ASF/ARF/BSF-HRS

PL-75-ASF/ARF/BSF-HRS

SKU:PL-75-ASF-ARF-BSF-HRS-LIGHT-DUTY

Enquire Now
* Brackets: Pressed steel plate, precision ball bearing in the swivel head which is advantageous to smooth swiveling and excellent durability, strong integrated pressed steel frame, total-lock top brake system which is applied in wheel and swivel head simultaneously with independent locking and unlocking lever, bolted wheel axle structure,
* Surface Treatment: Powder coating, zinc plated
* Wheel: Injected rubber(Shore A85), PP core, one ball bearing

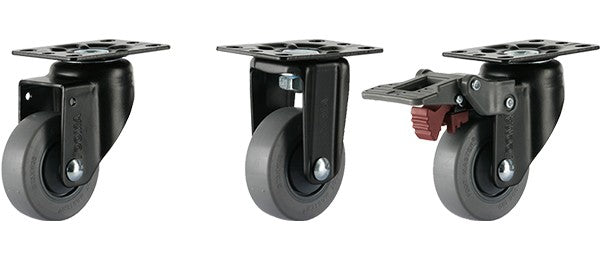

● Model
ㆍPL-75-ASF-HRS(Swivel)
ㆍPL-75-ARF-HRS(Rigid)
ㆍPL-75-BSF-HRS(Swivel with brake)

View full details
Wheel Diameter75 mm
Width of Tread25 mm
Hardness of Tread85 Shore A

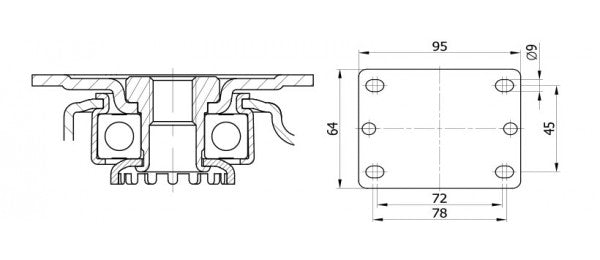

Size of Plate95 x 64 mm
Plate Hole Centers78 x 45 or 72 x 45 mm
Plate Hole9 mm
Offset40 mm
Overall Height112.5 mm
Temperature-10 ~ 90 ℃
Load Capacity / 1pcs75 kg
Load Capacity / 4pcs225 kg
