Foot Master

PL-150-ASF/ARF/BSF-LUD

PL-150-ASF/ARF/BSF-LUD

SKU:PL-150-ASF-ARF-BSF-LUD-LIGHT-DUTY

Enquire Now
* Brackets: Pressed steel plate, precision ball bearing in the swivel head which is advantageous to smooth swiveling and excellent durability, strong integrated pressed steel frame, total-lock top brake system which is applied in wheel and swivel head simultaneously with independent locking and unlocking lever, bolted wheel axle structure,
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A90), aluminum core, two ball bearings

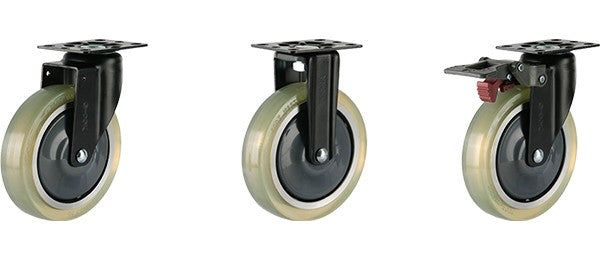

● Model
ㆍPL-150-ASF-LUD(Swivel)
ㆍPL-150-ARF-LUD(Rigid)
ㆍPL-150-BSF-LUD(Swivel with brake)

View full details
Wheel Diameter150 mm
Width of Tread30 mm
Hardness of Tread90 Shore A

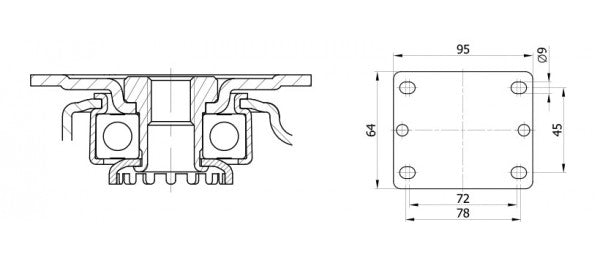

Size of Plate95 x 64 mm
Plate Hole Centers78 x 45 or 72 x 45 mm
Plate Hole9 mm
Offset40 mm
Overall Height188 mm
Temperature-10 ~ 90 ℃
Load Capacity / 1pcs120 kg
Load Capacity / 4pcs360 kg
