Foot Master

PL-125-ASS/BSS-TUS

PL-125-ASS/BSS-TUS

SKU:PL-125-ASS-BSS-TUS-LIGHT-DUTY

Enquire Now
* Brackets: Forged steel bolt, precision ball bearing in the swivel head which is advantageous to smooth swiveling and excellent durability, strong integrated pressed steel frame, total-lock top brake system which is applied in wheel and swivel head simultaneously with independent locking and unlocking lever, bolted wheel axle structure,
* Surface Treatment: Powder coating, zinc plated
* Wheel: Injected polyurethane(Shore A92), PP core, one ball bearing
● Model
ㆍPL-125-ASS-TUS(Swivel)
ㆍPL-125-BSS-TUS(Swivel with brake)
View full details
Wheel Diameter125 mm
Width of Tread30 mm
Hardness of Tread92 Shore A

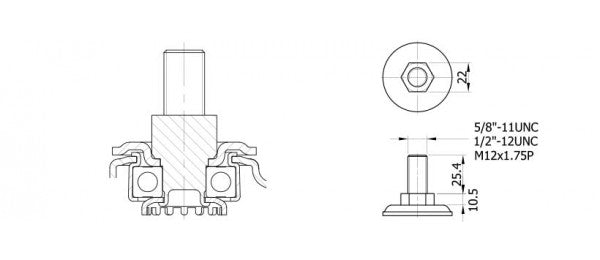

Center Bolt5/8 "-11UNC or M12x1.75P or 1/2 "-12UNC
Bolt Length25mm
Offset40 mm
Overall Height162.5 mm
Temperature-10 ~ 90 ℃
Load Capacity / 1pcs110 kg
Load Capacity / 4pcs330 kg
