Foot Master

PL-100-ASS/BSS-HRS

PL-100-ASS/BSS-HRS

SKU:PL-100-ASS-BSS-HRS-LIGHT-DUTY

Enquire Now
* Brackets: Forged steel bolt, precision ball bearing in the swivel head which is advantageous to smooth swiveling and excellent durability, strong integrated pressed steel frame, total-lock top brake system which is applied in wheel and swivel head simultaneously with independent locking and unlocking lever, bolted wheel axle structure,
* Surface Treatment: Powder coating, zinc plated
* Wheel: Injected rubber(Shore A85), PP core, one ball bearing
● Model
ㆍPL-100-ASS-HRS(Swivel)
ㆍPL-100-BSS-HRS(Swivel with brake)
View full details
Wheel Diameter100 mm
Width of Tread30 mm
Hardness of Tread85 Shore A

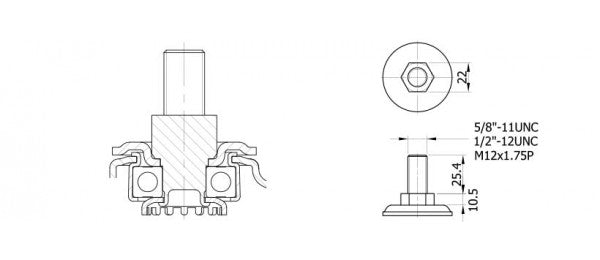

Center Bolt5/8 "-11UNC or M12x1.75P or 1/2 "-12UNC
Bolt Length25mm
Offset40 mm
Overall Height137.5 mm
Temperature-10 ~ 90 ℃
Load Capacity / 1pcs100 kg
Load Capacity / 4pcs300 kg
