Foot Master

PL-100-ASF/ARF/BSF-TUS

PL-100-ASF/ARF/BSF-TUS

SKU:PL-100-ASF-ARF-BSF-TUS-LIGHT-DUTY

Enquire Now
* Brackets: Pressed steel plate, precision ball bearing in the swivel head which is advantageous to smooth swiveling and excellent durability, strong integrated pressed steel frame, total-lock top brake system which is applied in wheel and swivel head simultaneously with independent locking and unlocking lever, bolted wheel axle structure,
* Surface Treatment: Powder coating, zinc plated
* Wheel: Injected polyurethane(Shore A92), PP core, one ball bearing

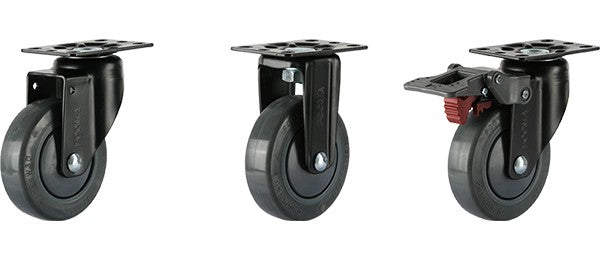

● Model
ㆍPL-100-ASF-TUS(Swivel)
ㆍPL-100-ARF-TUS(Rigid)
ㆍPL-100-BSF-TUS(Swivel with brake)
View full details
Wheel Diameter100 mm
Width of Tread30 mm
Hardness of Tread92 Shore A

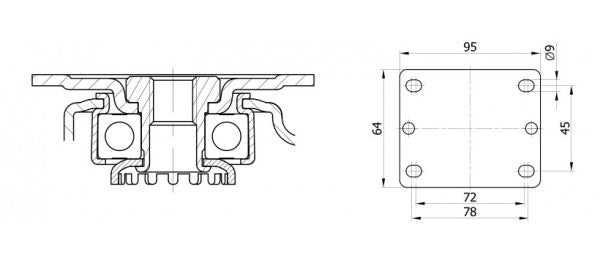

Size of Plate95 x 64 mm
Plate Hole Centers78 x 45 or 72 x 45 mm
Plate Hole9 mm
Offset40 mm
Overall Height137.5 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs100 kg
Load Capacity / 4pcs300 kg
