Foot Master

PHS-100-ASF/BSF-MCD

PHS-100-ASF/BSF-MCD

SKU:PHS-100-ASF-BSF-MCD-MEDIUM-DUTY

Enquire Now
* Brackets: Pressed steel plate, double ball bearing with four hardened bearing seats in the swivel head which is advantageous to rapid swiveling and excellent durability, strong integrated pressed steel frame, smooth-operating top brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings

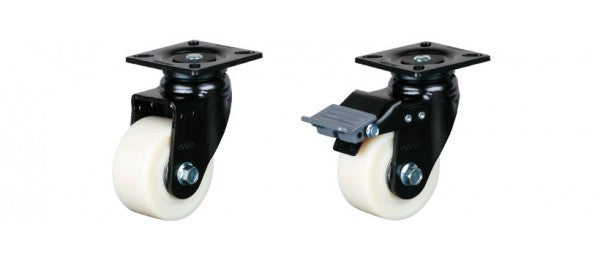

● Model
ㆍPHS-100-ASF-MCD(Swivel)
ㆍPHS-100-BSF-MCD(Swivel with brake)
View full details
Wheel Diameter100 mm
Width of Tread48 mm
Hardness of Tread80 Shore D

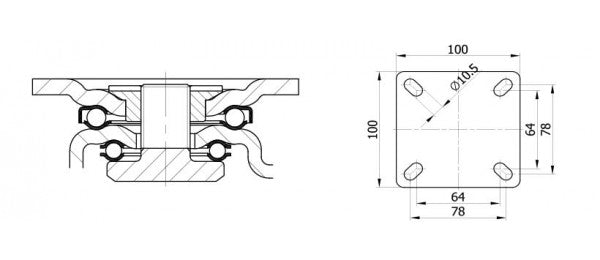

Size of Plate100 x 100 mm
Plate Hole Centers78 x 78 or 64 x 64mm
Plate Hole10.5 mm
Offset50 mm
Overall Height156 mm
Temperature-10 ~ 90 ℃
Load Capacity / 1pcs600 kg
Load Capacity / 4pcs1,800 kg
