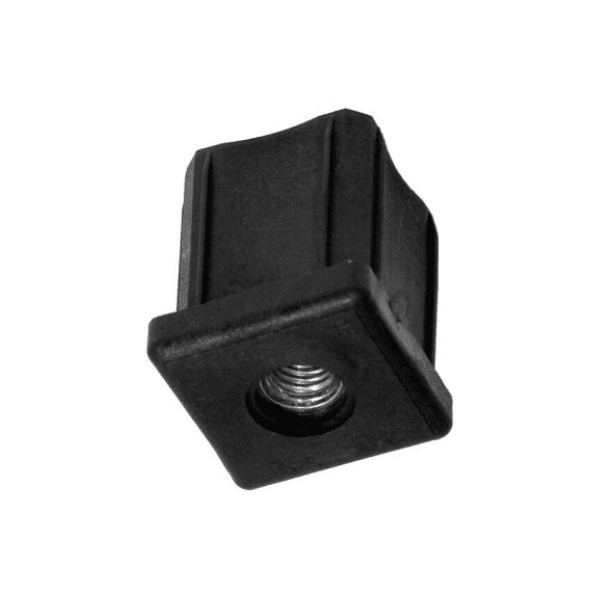

Long Threaded Square Tube End LTS Series
Long Threaded Square Tube End LTS Series
Only available with Zinc Plated Mild Steel Thread. See column T, for length of thread. For use with castors.
– (G) is recommended ID tube sizes
| Part No. | Size | A | B | C | D | E | F | G | T | Rating |
| LTS19/M8 | 19xM8 | 19 | M8 | 22.5 | 24.8 | 9 | 16 | 15-16 | 16 | 50kg |
| LTS19/M10 | 19xM10 | 19 | M10 | 22.5 | 24.8 | 11 | 16 | 15-16 | 24 | 50kg |
| LTS40/M10 | 40xM10 | 40 | M10 | 39 | 45 | 11 | 36.6 | 36-37 | 24 | 500kg |
| LTS40/M12 | 40xM12 | 40 | M12 | 39 | 45 | 13 | 36.6 | 36-37 | 24 | 500kg |
| LTS51/M16 | 51xM16 | 51 | M16 | 39 | 47 | 18 | 48 | 47-48 | 31 | 750kg |
