Foot Master

JS-70-ASS-HUD

Name: JS-70-ASS-HUD
Brand: Foot Master
SKU: JS-70-ASS-HUD-COMPACT
Availability: InStock

SKU:JS-70-ASS-HUD-COMPACT

* Brackets: Forged steel bolt, high-strength pressed steel plate with even hardened heat treatment, strong integrated pressed steel frame, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Cast polyurethane(Shore D70), aluminum core, two ball bearings

● Model
ㆍJS-70-ASS-HUD(Swivel)

View full details

Wheel Diameter	70 mm
Width of Tread	48 mm
Hardness of Tread	70 Shore D

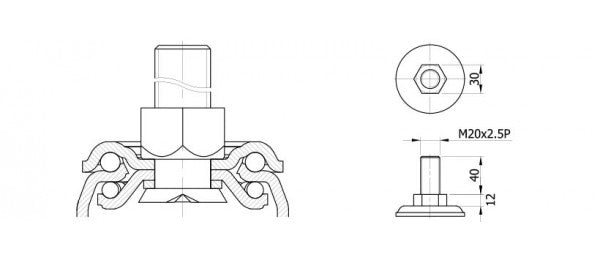

Center Bolt	M20 x 2.5P
Bolt Length	40 mm
Offset	21 mm
Overall Height	108 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	500 kg
Load Capacity / 4pcs	1,500 kg
