Foot Master

JS-70-ASF/ARF-NYD

JS-70-ASF/ARF-NYD

JS-70-ASF-ARF-NYD-COMPACT

Enquire Now
* Brackets: High-strength pressed steel plate with even hardened heat treatment, strong integrated pressed steel frame, dust protection cover in the swivel head, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Nylon66(Shore D70), two ball bearings

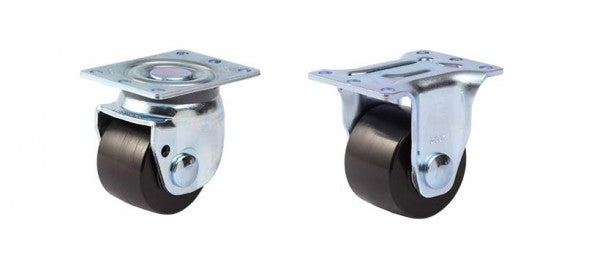

● Model
ㆍJS-70-ASF-NYD(Swivel)
ㆍJS-70-ARF-NYD(Rigid)
View full details
Wheel Diameter70 mm
Width of Tread48 mm
Hardness of Tread70 Shore D

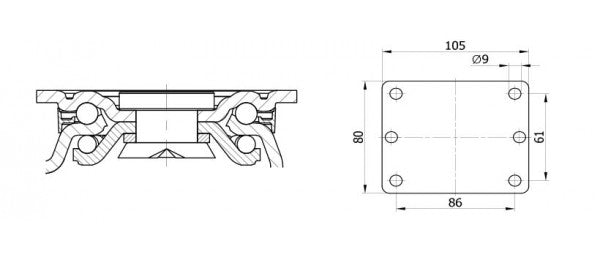

Size of Plate105 x 80 mm
Plate Hole Centers86 x 61 mm
Plate Hole9 mm
Offset21 mm
Overall Height97 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs600 kg
Load Capacity / 4pcs1,800 kg
