JS-70-ASF/ARF-HUD

JS-70-ASF/ARF-HUD

JS-70-ASF-ARF-HUD-COMPACT

Enquire Now
* Brackets: High-strength pressed steel plate with even hardened heat treatment, strong integrated pressed steel frame, dust protection cover in the swivel head, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Cast polyurethane(Shore D70), aluminum core, two ball bearings

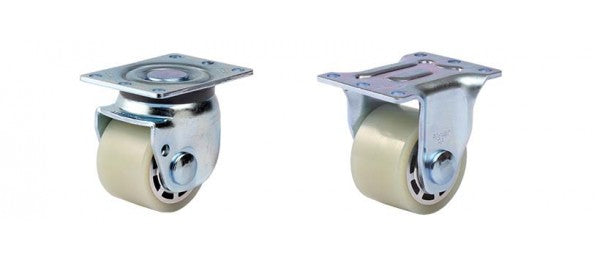

● Model
ㆍJS-70-ASF-HUD(Swivel)
ㆍJS-70-ARF-HUD(Rigid)
View full details
Wheel Diameter70 mm
Width of Tread48mm
Hardness of Tread70 Shore D

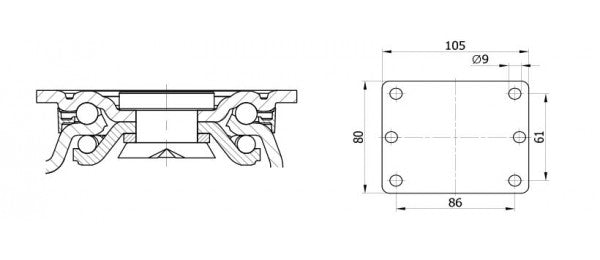

Size of Plate105 x 80 mm
Plate Hole Centers86 x 61 mm
Plate Hole9 mm
Offset21 mm
Overall Height97 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs500 kg
Load Capacity / 4pcs1,500 kg
