Foot Master

JS-60-ASF-MCD-PJP

Name: JS-60-ASF-MCD-PJP
Brand: Foot Master
SKU: JS-60-ASF-MCD-PJP-COMPACT
Availability: InStock

SKU:JS-60-ASF-MCD-PJP-COMPACT

* Brackets: High-strength pressed steel plate with even hardened heat treatment, strong integrated pressed steel frame, dust protection cover in the swivel head, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings

● Model
ㆍJS-60-ASF-MCD-PJP(Swivel)

View full details

Wheel Diameter	60 mm
Width of Tread	48 mm
Hardness of Tread	80 Shore D

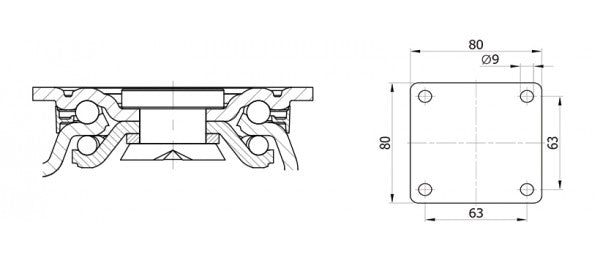

Size of Plate	80 x 80 mm
Plate Hole Centers	63 x 63 mm
Plate Hole	9 mm
Offset	21 mm
Overall Height	87 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	600 kg
Load Capacity / 4pcs	1,800 kg
