Foot Master

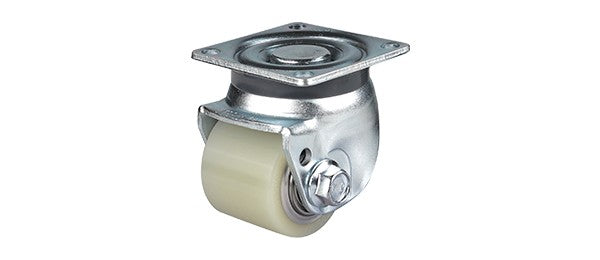

JS-60-ASF-HUD-PJP

JS-60-ASF-HUD-PJP

JS-60-ASF-HUD-PJP-COMPACT

Enquire Now
* Brackets: High-strength pressed steel plate with even hardened heat treatment, strong integrated pressed steel frame, dust protection cover in the swivel head, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Cast polyurethane(Shore D70), aluminum core, two ball bearings
● Model
ㆍJS-60-ASF-HUD-PJP(Swivel)
View full details
Wheel Diameter60 mm
Width of Tread48 mm
Hardness of Tread70 Shore D

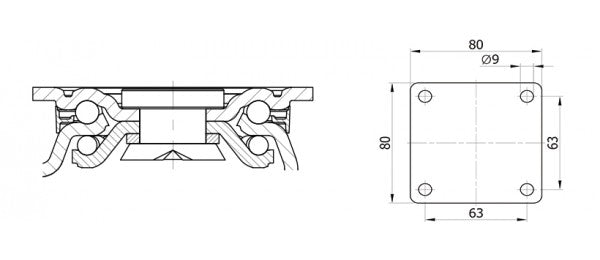

Size of Plate80 x 80 mm
Plate Hole Centers63 x 63 mm
Plate Hole9 mm
Offset21 mm
Overall Height87 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs400 kg
Load Capacity / 4pcs1,200 kg
