Foot Master

JS-60-ASF/ARF-NYD

Name: JS-60-ASF/ARF-NYD
Brand: Foot Master
SKU: JS-60-ASF-ARF-NYD-COMPACT
Availability: InStock

JS-60-ASF/ARF-NYD

SKU:JS-60-ASF-ARF-NYD-COMPACT

* Brackets: High-strength pressed steel plate with even hardened heat treatment, strong integrated pressed steel frame, dust protection cover in the swivel head, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Nylon66(Shore D70), two ball bearings

● Model

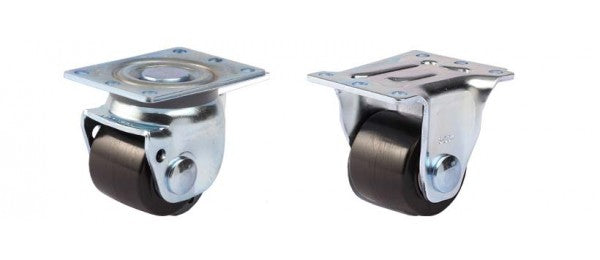

ㆍJS-60-ASF-NYD(Swivel)
ㆍJS-60-ARF-NYD(Rigid)

View full details

Wheel Diameter	60 mm
Width of Tread	48 mm
Hardness of Tread	70 Shore D

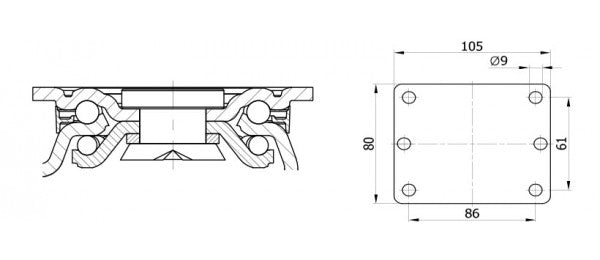

Size of Plate	105 x 80 mm
Plate Hole Centers	86 x 61 mm
Plate Hole	9 mm
Offset	21 mm
Overall Height	87 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	500 kg
Load Capacity / 4pcs	1,500 kg
