Heavy Duty Plate HDP 121 Series

Heavy Duty Plate HDP 121 Series

Enquire Now

HEAVY DUTY PLATE ADJUSTABLE LEVELLING FEET

Blyth Enterprises supply the largest range of adjustable levelling feet in Western Australia.

We stock a range of sizes of heavy duty adjustable levelling feet with the handling of heavy weight ratings and an ideal choice for extremely heavy equipment. These stainless steel adjustable levelling feet are ideal for heavy industrial, light industrial, commercial or workshops that are located in a wet or wash down areas. Adjustable levelling feet can solve problems with uneven floors and we often supply to businesses in the hospitality, retail, food, mining, medical, fishing, marine, manufacturing and any light or heavy commercial industry who require level structures for heavy equipment. Bolt down is available as well as various base size and shapes.

Talk to us today about your needs and give us a call, email or come into our Osborne Park warehouse today.

View full details

(HDP 121 Series and Bolt Down HDP 131 Series)

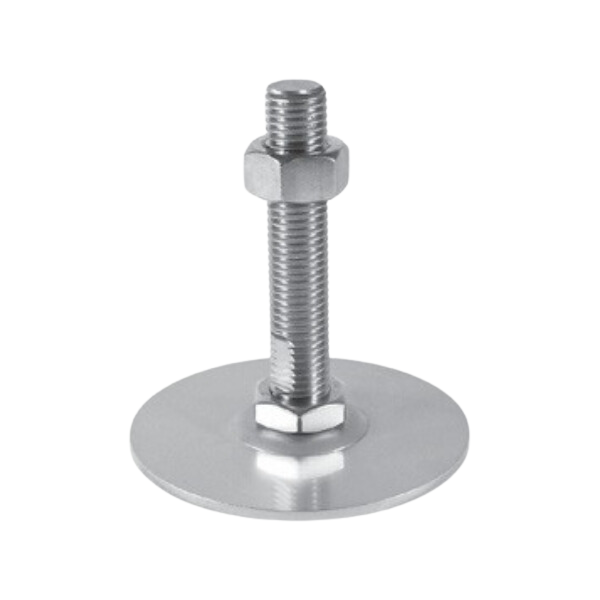

HDP is an extra heavy duty A-Justa-Foot with a fixed stud (no pivot angle), ideal for heavy machinery. The complete unit including plate, stud and locknut are all 304 stainless steel, making it perfect for wash down areas. The base is made out of 3.0mm 304 s/s plate and is laser cut to standard stock sizes.

The complete HDP range is also available in bolt down (HDP 131 Series) – with a 60 base @ 10mm hole x 80mm centres , and 90 base @ 12mm hole x a 60mm centres.

There is also the ability to custom laser cut base to any size or shape (depending on quantity).

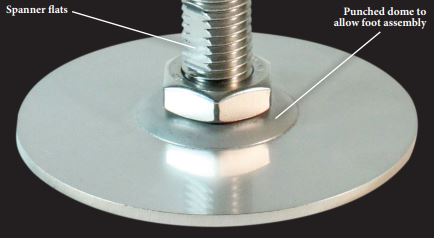

The stud is able to rotate by using the spanner flats machined on the stud while the base stays stationary, and once the adjustment is finished you can use the half nut supplied to lock the height in position.

Part Base Dia Thread Thread Length Base Height Overall Height Rating
HDP 121/60/M12/80 60 M12 80 12 95 1200kg
HDP 121/60/M12/180 60 M12 180 12 195 1200kg
HDP 121/90/M12/80 90 M12 80 12 95 1200kg
HDP 121/90/M12/180 90 M12 180 12 195 1200kg
HDP 121/60/M16/80 60 M16 80 14 95 2000kg
HDP 121/60/M16/180 60 M16 180 14 195 2000kg
HDP 121/90/M16/80 90 M16 80 14 95 2000kg
HDP 121/90/M16/180 90 M16 180 14 195 2000kg
HDP 121/90/M20/110 90 M20 110 16 126 3500kg
HDP 121/90/M20/180 90 M20 180 16 195 3500kg
