Foot Master

GXTT-75-ASS/BSS-HUD

Name: GXTT-75-ASS/BSS-HUD
Brand: Foot Master
SKU: GXTT-75-ASS-BSS-HUD-HEAVY-DUTY
Availability: InStock

GXTT-75-ASS/BSS-HUD

SKU:GXTT-75-ASS-BSS-HUD-HEAVY-DUTY

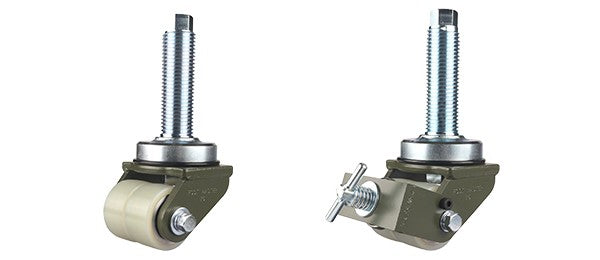

* Brackets: Forged steel bolt, thrust bearing and taper roller bearing in the swivel head to optimize heavy load, grease nipple, strong welded steel frame, hand-operated wheel brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore D70), aluminum core, two ball bearings(6005zz)
● Model
ㆍGXTT-75-ASS-HUD(Swivel)
ㆍGXTT-75-BSS-HUD(Swivel with brake)

View full details

Wheel Diameter	75 mm
Width of Trea	40 x 2 mm
Hardness of Tread	70 Shore D
Center Bolt	M42 x 4.5P or M52 x 5.0P / TR36 x 5.0P
Bolt Length	130(HEX. +20) mm or 200(HEX. +20) mm / 174(HEX. +20) mm
Offset	45 mm
Overall Height	128.5 mm (M52 x 5.0P - 130.5 mm)
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	800 kg
Load Capacity / 4pcs	2,400 kg

※GXTT-Stem casters are produced as custom casters.
