Foot Master

GXTT-75-ASF/ARF/BSF/BRF-MCD

GXTT-75-ASF/ARF/BSF/BRF-MCD

SKU:GXTT-75-ASF-ARF-BSF-BRF-MCD-HEAVY-DUTY

Enquire Now
* Brackets: Forged steel plate, thrust bearing and taper roller bearing in the swivel head to optimize heavy load, grease nipple, strong welded steel frame, hand-operated wheel brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings

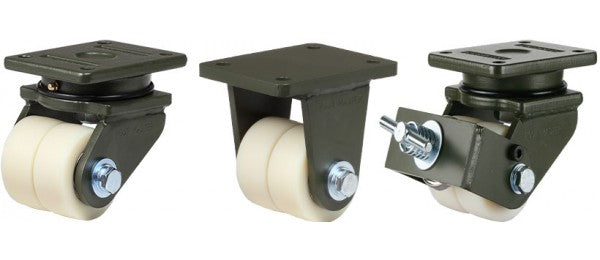

● Model
ㆍGXTT-75-ASF-MCD(Swivel)
ㆍGXTT-75-ARF-MCD(Rigid)
ㆍGXTT-75-BSF-MCD(Swivel with brake)
ㆍGXTT-75-BRF-MCD(Rigid with brake)
View full details
Wheel Diameter75 mm
Width of Tread40 x 2 mm
Hardness of Tread80 Shore D

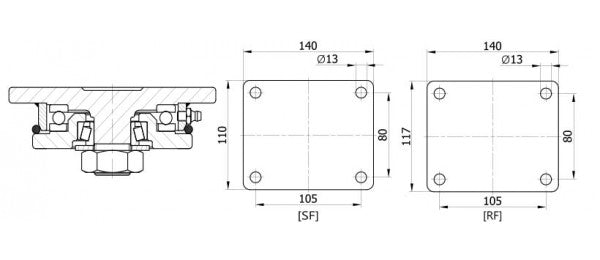

Size of Plate[SF]140 x 110 [RF]140 x 117mm
Plate Hole Centers105 x 80 mm
Plate Hole13 mm
Offset45 mm
Overall Heigh125 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs1,700 kg
Load Capacity / 4pcs5,100 kg
