Foot Master

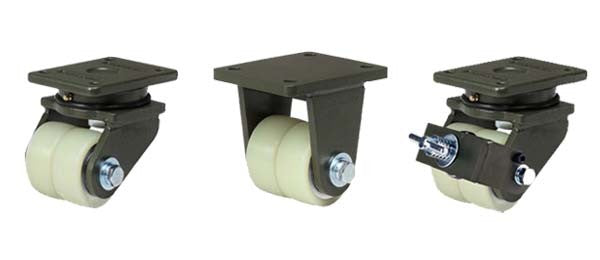

GXTT-75-ASF/ARF/BSF/BRF-HUD

GXTT-75-ASF/ARF/BSF/BRF-HUD

SKU:GXTT-75-ASF-ARF-BSF-BRF-HUD-HEAVY-DUTY

Enquire Now
* Brackets: Forged steel plate, thrust bearing and taper roller bearing in the swivel head to optimize heavy load, grease nipple, strong welded steel frame, hand-operated wheel brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore D70), aluminum core, two ball bearings
● Model
ㆍGXTT-75-ASF-HUD(Swivel)
ㆍGXTT-75-ARF-HUD(Rigid)
ㆍGXTT-75-BSF-HUD(Swivel with brake)
ㆍGXTT-75-BRF-HUD(Rigid with brake)
View full details
Wheel Diameter75 mm
Width of Tread40 x 2 mm
Hardness of Tread70 Shore D

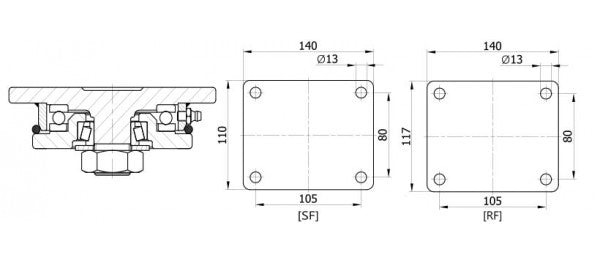

Size of Plate[SF]140 x 110 [RF]140 x 117mm
Plate Hole Centers105 x 80 mm
Plate Hole13 mm
Offset45 mm
Overall Heigh125 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs800 kg
Load Capacity / 4pcs2,400 kg
