Foot Master

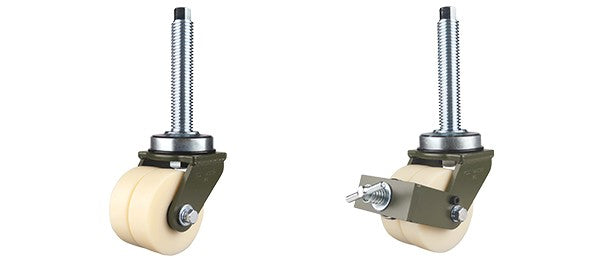

GXTT-100-ASS/BSS-MCD

GXTT-100-ASS/BSS-MCD

GXTT-100-ASS-BSS-MCD-HEAVY-DUTY

Enquire Now
* Brackets: Forged steel bolt, thrust bearing and taper roller bearing in the swivel head to optimize heavy load, grease nipple, strong welded steel frame, hand-operated wheel brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), aluminum core, two ball bearings(6005zz)
● Model
ㆍGXTT-100-ASS-MCD(Swivel)
ㆍGXTT-100-BSS-MCD(Swivel with brake)

View full details
Wheel Diameter100 mm
Width of Trea40 x 2 mm
Hardness of Tread80 Shore D
Center BoltM42 x 4.5P or M52 x 5.0P / TR36 x 5.0P
Bolt Length130(HEX. +20) mm or 200(HEX. +20) mm / 174(HEX. +20) mm
Offset50 mm
Overall Height153.5 mm (M52 x 5.0P - 155.5 mm)
Temperature-10 ~ +90 ℃
Load Capacity / 1pcsTR36 x 5.0P - 1,000 kg
M42 x 4.5P - 1,400 kg
M52 x 5.0P - 1,700 kg
Load Capacity / 4pcsTR36 x 5.0P - 3,000 kg
M42 x 4.5P - 4,400 kg
M52 x 5.0P - 5,100 kg



※GXTT-Stem casters are produced as custom casters.
