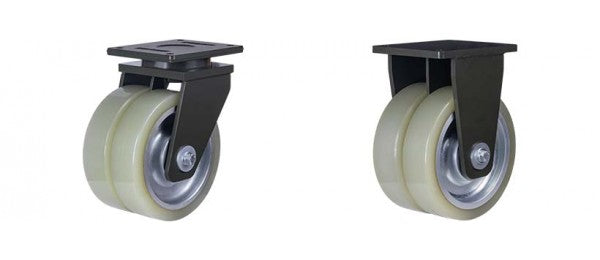

| Wheel Diameter | 300 mm |
| Width of Tread | 78 x 2 mm |
| Hardness of Tread | 95 Shore A |

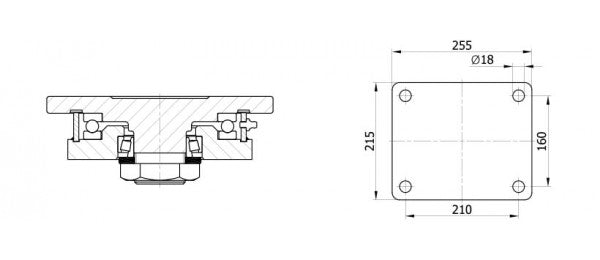

| Size of Plate | 255 x 215 mm |
| Plate Hole Centers | 210 x 160 mm |
| Plate Hole | 18 mm |
| Offset | 80 mm |
| Overall Height | 390 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 3,500 kg |
| Load Capacity / 4pcs | 10,500 kg |
