Foot Master

GXT-80-ASF/ARF/BSF-NYD

Name: GXT-80-ASF/ARF/BSF-NYD
Brand: Foot Master
SKU: GXT-80-ASF-ARF-BSF-NYD-HEAVY-DUTY
Availability: InStock

GXT-80-ASF/ARF/BSF-NYD

SKU:GXT-80-ASF-ARF-BSF-NYD-HEAVY-DUTY

Enquire Now

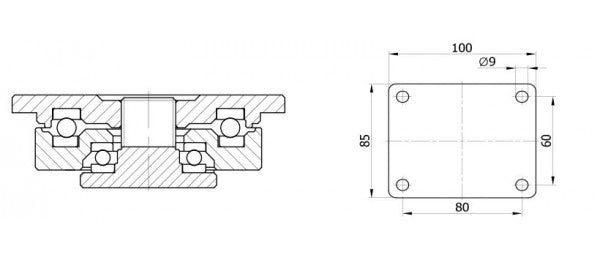

* Brackets: Forged steel plate, double thrust bearing in the swivel head to optimize heavy load, strong welded steel frame, hand-operated wheel brake system, special wheel axle for reinforce of smooth rolling,
* Surface Treatment: Powder coating, zinc plated
* Wheel: High-Performance Nylon(Shore D70), two ball bearings(6204zz)

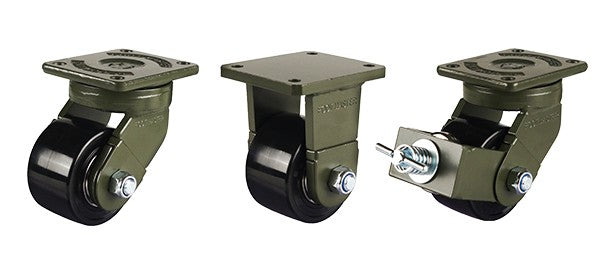

● Model
ㆍGXT-80-ASF-NYD(Swivel)
ㆍGXT-80-ARF-NYD(Rigid)
ㆍGXT-80-BSF-NYD(Swivel with brake)

View full details

Wheel Diameter	80 mm
Width of Tread	48 mm
Hardness of Tread	70 Shore D
Size of Plate	100 x 85 mm
Plate Hole Centers	80 x 60 mm
Plate Hole	9 mm
Offset	40 mm
Overall Height	120 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	800 kg
Load Capacity / 4pcs	2,400 kg

※The allowable load capacity of NYD is decreased when continuously over 30 minutes. (Caution - Not recommended for AGV casters / Idle time extended to prevent thermal deformation - KS B ISO 22883)
