Foot Master

GXT-80-ASF/ARF/BSF-MCD

GXT-80-ASF/ARF/BSF-MCD

SKU:GXT-80-ASF-ARF-BSF-MCD-HEAVY-DUTY

Enquire Now
* Brackets: Forged steel plate, double thrust bearing in the swivel head to optimize heavy load, strong welded steel frame, hand-operated wheel brake system, special wheel axle for reinforce of smooth rolling,
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings

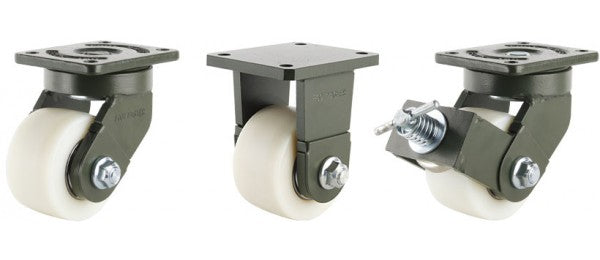

● Model
ㆍGXT-80-ASF-MCD(Swivel)
ㆍGXT-80-ARF-MCD(Rigid)
ㆍGXT-80-BSF-MCD(Swivel with brake)
View full details
Wheel Diameter80 mm
Width of Tread48 mm
Hardness of Tread80 Shore D

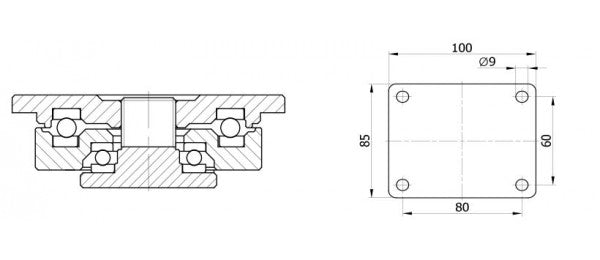

Size of Plate100 x 85 mm
Plate Hole Centers80 x 60 mm
Plate Hole9 mm
Offset40 mm
Overall Height120 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs800 kg
Load Capacity / 4pcs2,400 kg
