Foot Master

GXT-75-ASS/BSS-NYD

Name: GXT-75-ASS/BSS-NYD
Brand: Foot Master
SKU: GXT-75-ASS-BSS-NYD-HEAVY-DUTY
Availability: InStock

GXT-75-ASS/BSS-NYD

SKU:GXT-75-ASS-BSS-NYD-HEAVY-DUTY

* Brackets: Forged steel bolt, double thrust bearing in the swivel head to optimize heavy load, strong welded steel frame, hand-operated wheel brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: High-Performance Nylon(Shore D70), two ball bearings
● Model
ㆍGXT-75-ASS-NYD(Swivel)
ㆍGXT-75-BSS-NYD(Swivel with brake)

View full details

Wheel Diameter	75 mm
Width of Tread	48 mm
Hardness of Tread	70 Shore D

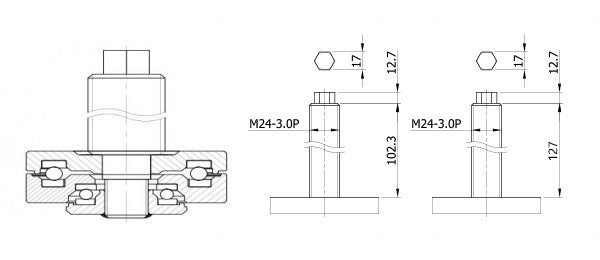

Cebter Bolt	M24 x 3P
Bolt Lange	102.3(HEX. +12.7) mm / 127(HEX. + 12.7) mm
Offset	25 mm
Overall Height	108 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	450 kg
Load Capacity / 4pcs	1,350 kg

※The allowable load capacity of NYD is decreased when continuously over 30 minutes. (Caution - Not recommended for AGV casters / Idle time extended to prevent thermal deformation - KS B ISO 22883)
