Foot Master

GXT-250-ASF/ARF/BSF-HUD

GXT-250-ASF/ARF/BSF-HUD

SKU:GXT-250-ASF-ARF-BSF-HUD-HEAVY-DUTY

Enquire Now
* Brackets: Forged steel plate, double thrust bearing in the swivel head to optimize heavy load, strong welded steel frame, hand-operated wheel brake system, special wheel axle for reinforce of smooth rolling,
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore D70), aluminum core, two ball bearings

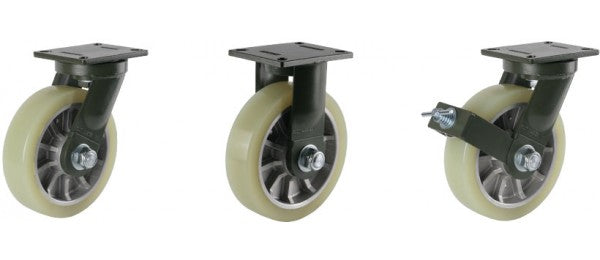

● Model
ㆍGXT-250-ASF-HUD(Swivel)
ㆍGXT-250-ARF-HUD(Rigid)
ㆍGXT-250-BSF-HUD(Swivel with brake)
View full details
Wheel Diameter250 mm
Width of Tread64 mm
Hardness of Tread95 Shore A

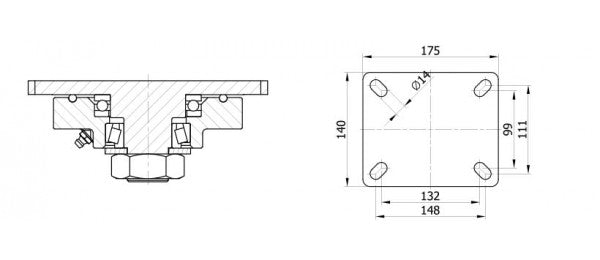

Size of Plate175 x 140 mm
Plate Hole Centers148 x 111 or 132 x 99 mm
Plate Hole14 mm
Offset75 mm
Overall Height310 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs2,300 kg
Load Capacity / 4pcs6,900 kg
