Foot Master

GXT-200-ASF/ARF/BSF-MCD

Name: GXT-200-ASF/ARF/BSF-MCD
Brand: Foot Master
SKU: GXT-200-ASF-ARF-BSF-MCD-HEAVY-DUTY
Availability: InStock

GXT-200-ASF/ARF/BSF-MCD

SKU:GXT-200-ASF-ARF-BSF-MCD-HEAVY-DUTY

Enquire Now

* Brackets: Forged steel plate, thrust bearing and taper roller bearing in the swivel head to optimize heavy load, strong welded steel frame, hand-operated wheel brake system, special wheel axle for reinforce of smooth rolling,
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings

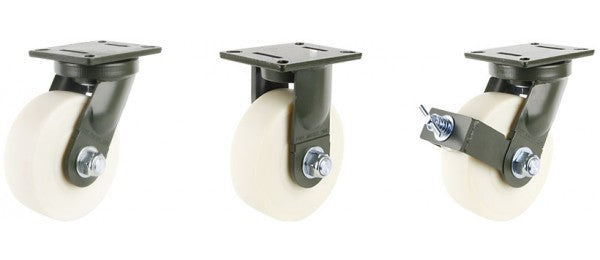

● Model
ㆍGXT-200-ASF-MCD(Swivel)
ㆍGXT-200-ARF-MCD(Rigid)
ㆍGXT-200-BSF-MCD(Swivel with brake)

View full details

Wheel Diameter	200 mm
Width of Tread	70 mm
Hardness of Tread	80 Shore D

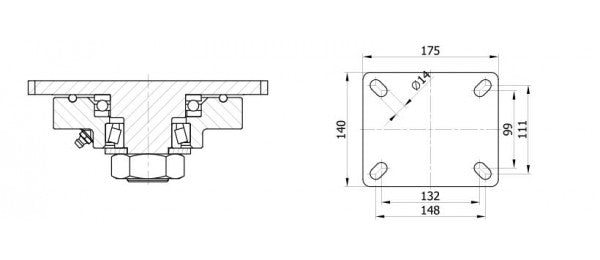

Size of Plate	175 x 140 mm
Plate Hole Centers	148 x 111 or 132 x 99 mm
Plate Hole	14 mm
Offset	75 mm
Overall Height	260 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	2,500 kg
Load Capacity / 4pcs	7,500 kg
