Foot Master

GXT-150-ASF/ARF/BSF-MCD

Name: GXT-150-ASF/ARF/BSF-MCD
Brand: Foot Master
SKU: GXT-150-ASF-ARF-BSF-MCD-HEAVY-DUTY
Availability: InStock

GXT-150-ASF/ARF/BSF-MCD

SKU:GXT-150-ASF-ARF-BSF-MCD-HEAVY-DUTY

Enquire Now

* Brackets: Forged steel plate, thrust bearing and taper roller bearing in the swivel head to optimize heavy load, strong welded steel frame, hand-operated wheel brake system, special wheel axle for reinforce of smooth rolling,
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings

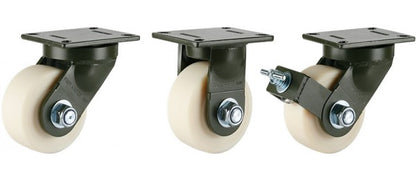

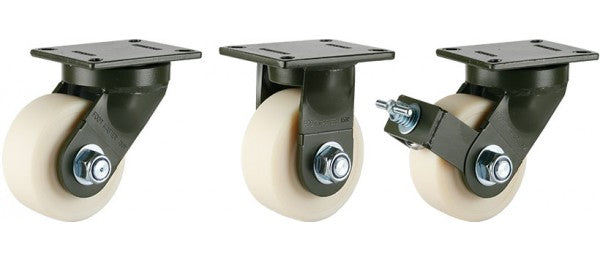

● Model
ㆍGXT-150-ASF-MCD(Swivel)
ㆍGXT-150-ARF-MCD(Rigid)
ㆍGXT-150-BSF-MCD(Swivel with brake)

View full details

Wheel Diameter	150 mm
Width of Tread	70 mm
Hardness of Tread	80 Shore D

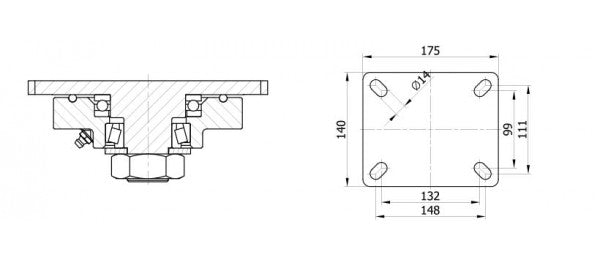

Size of Plate	175 x 140 mm
Plate Hole Centers	148 x 111 or 132 x 99 mm
Plate Hole	14 mm
Offset	80 mm
Overall Height	200 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	2,200 kg
Load Capacity / 4pcs	6,600 kg
