Foot Master

GXT-100-ASS/BSS-HUD

Name: GXT-100-ASS/BSS-HUD
Brand: Foot Master
SKU: GXT-100-ASS-BSS-HUD-HEAVY-DUTY
Availability: InStock

GXT-100-ASS/BSS-HUD

SKU:GXT-100-ASS-BSS-HUD-HEAVY-DUTY

* Brackets: Forged steel bolt, double thrust bearing in the swivel head to optimize heavy load, strong welded steel frame, hand-operated wheel brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore D70), steel core, two ball bearings
● Model
ㆍGXT-100-ASS-HUD(Swivel)
ㆍGXT-100-BSS-HUD(Swivel with brake)

ㆍTM-32-4 stem NUT option

View full details

Wheel Diameter	100 mm
Width of Tread	48 mm
Hardness of Tread	70 Shore D

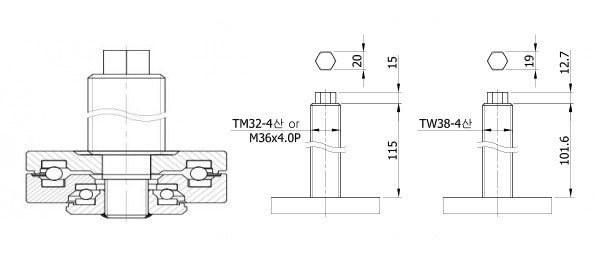

Center Bolt	TM32-4Thread or M 36 x 4.0P /TW 38-4Thread
Bolt Length	115(HEX. +15) mm / 101.6(HEX. +12.7) mm
Offset	40 mm
Overall Height	140 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	600 kg
Load Capacity / 4pcs	1,800 kg
