Foot Master

GXT-100-ASF/ARF/BSF-HUD

Name: GXT-100-ASF/ARF/BSF-HUD
Brand: Foot Master
SKU: GXT-100-ASF-ARF-BSF-HUD-HEAVY-DUTY
Availability: InStock

GXT-100-ASF/ARF/BSF-HUD

SKU:GXT-100-ASF-ARF-BSF-HUD-HEAVY-DUTY

Enquire Now

* Brackets: Forged steel plate, double thrust bearing in the swivel head to optimize heavy load, strong welded steel frame, hand-operated wheel brake system, special wheel axle for reinforce of smooth rolling,
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore D70), steel core, two ball bearings

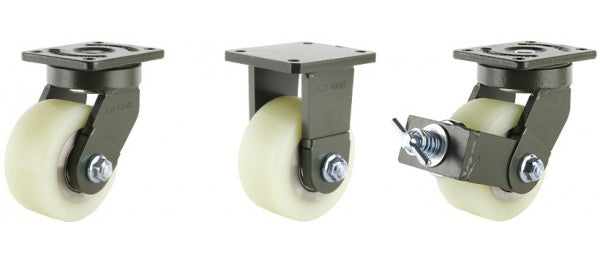

● Model
ㆍGXT-100-ASF-HUD(Swivel)
ㆍGXT-100-ARF-HUD(Rigid)
ㆍGXT-100-BSF-HUD(Swivel with brake)

View full details

Wheel Diameter	100 mm
Width of Tread	48 mm
Hardness of Tread	70 Shore D

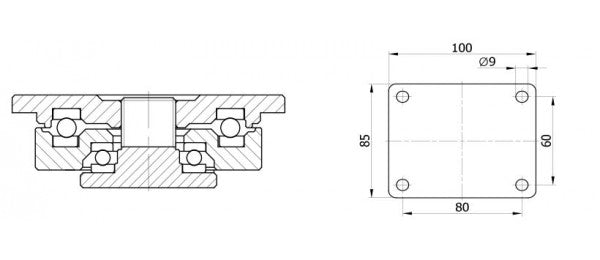

Size of Plate	100 x 85 mm
Plate Hole Centers	80 x 60 mm
Plate Hole	9 mm
Offset	40 mm
Overall Height	140 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	600 kg
Load Capacity / 4pcs	1,800 kg
