Foot Master

GT-400-ASF/ARF/BSF/BRF-TRD

GT-400-ASF/ARF/BSF/BRF-TRD

SKU:GT-400-ASF-ARF-BSF-BRF-TRD-AND

Enquire Now
* Brackets: Forged steel plate, thrust bearing and taper roller bearing in the swivel head to optimize heavy load, grease nipple, strong welded steel frame, hand-operated wheel brake system, bolted wheel axle structure, Airless solid tires for stable driving with no worries about damage or punctures
* Surface Treatment: Powder coating, zinc plated
* Wheel: Solid Tires(Shore A70), two ball bearings

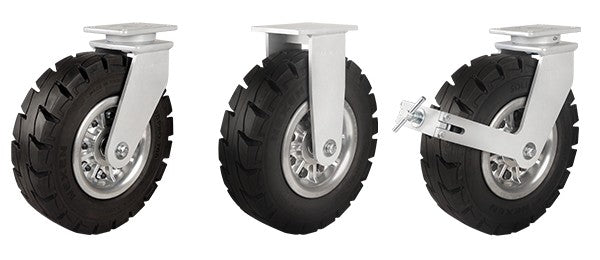

● Model
ㆍGT-400-ASF-TRD(Swivel)
ㆍGT-400-ARF-TRD(Rigid)
ㆍGT-400-BSF-TRD(Swivel with brake)
ㆍGT-400-BRF-TRD(Rigid with brake)
View full details
Wheel Diameter408 mm
Width of Tread113 mm
Hardness of Tread70 Shore A

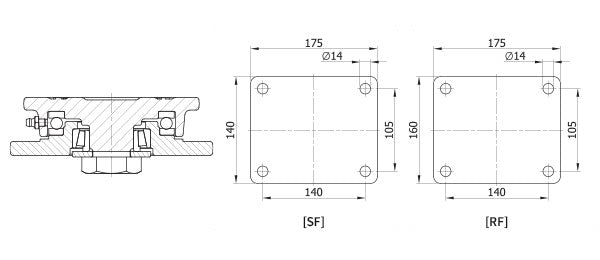

Size of Plate[SF]175 x 140 [RF]175 x 160mm
Plate Hole Centers140 x 105 mm
Plate Hole14 mm
Offset100 mm
Overall Heigh462 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs6km - 950 kg
25km - 730 kg
Load Capacity / 4pcs6km - 2,850 kg
25km - 2,190 kg
