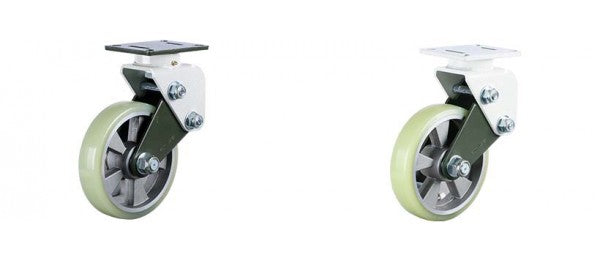

Foot Master

GSST-250-ASF/ARF/BSF-HUD

GSST-250-ASF/ARF/BSF-HUD

SKU:GSST-250-ASF-ARF-BSF-HUD-SHOCK-ABSORBING

Enquire Now
Towing by power vehicle(20km/h)
* Brackets: Forged steel plate, thrust bearing and taper roller bearing in the swivel head, rugged pressed steel frame with ivory color after welding, fine shock absorption function with special rubber(select between A65 and A75), towing by power vehicle, strong top brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A95), aluminum core, two ball bearings

● Model
ㆍGSST-250-ASF-HUD(Swivel)
ㆍGSST-250-ARF-HUD(Rigid)

● Spring hardness selectable
ㆍ(65º or 75º) / (Standard 65º)
View full details
Wheel Diameter250 mm
Width of Tread60 mm
Hardness of Tread95 Shore A

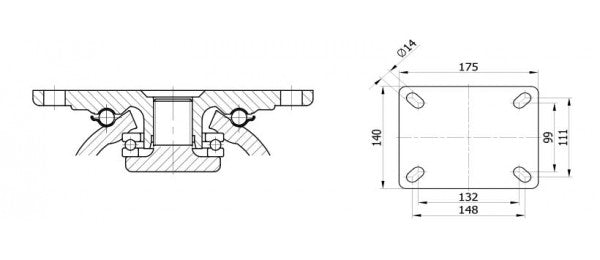

Size of Plate175 x 140 mm
Plate Hole Centers148 x 111 or 132 x 99 mm
Plate Hole14 mm
Shock Absorbing Extent30 mm
Offset78 ~ 92 mm
Overall Height362 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs1,350 kg
Load Capacity / 4pcs4,050 kg
