Foot Master

GSST-200W-ASF/ARF-HUD

GSST-200W-ASF/ARF-HUD

SKU:GSST-200W-ASF-ARF-HUD-SHOCK-ABSORBING

Enquire Now
Towing by power vehicle(20km/h)
* Brackets: Forged steel plate, ball bearing with hardened bearing seats and thrust bearing in the swivel head, rugged pressed steel frame with ivory color after welding, fine shock absorption function with special rubber, towing by power vehicle, strong top brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A95), aluminum core, two ball bearings



● Model
ㆍGSST-200W-ASF-HUD(Swivel)
ㆍGSST-200W-ARF-HUD(Rigid)

● Standard 75º
View full details
Wheel Diameter200 mm
Width of Tread48 mm
Hardness of Tread95 Shore A

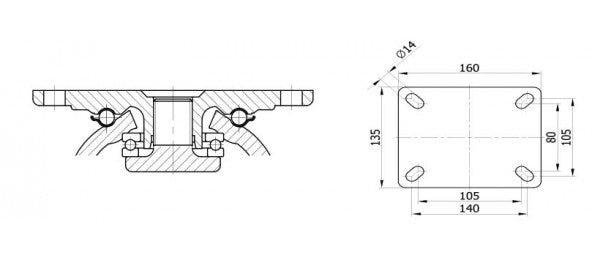

Size of Plate160 x 135 mm
Plate Hole Centers140 x 105 or 105 x 80 mm
Plate Hole14 mm
Shock Absorbing Extent30 mm
Offset50 ~ 68 mm
Overall Height279 mm
Temperature-10 ~ +90 ℃
Load Capacity / 1pcs500 kg
Load Capacity / 4pcs1,500 kg
