Foot Master

GLH-75-PUS-ASF/BSF-NYD

Name: GLH-75-PUS-ASF/BSF-NYD
Brand: Foot Master
SKU: GLH-75-PUS-ASF-BSF-NYD-COMPACT
Availability: InStock

GLH-75-PUS-ASF/BSF-NYD

SKU:GLH-75-PUS-ASF-BSF-NYD-COMPACT

Enquire Now

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, wheel brake system of on and off side pin, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Nylon66(Shore D70), two ball bearings

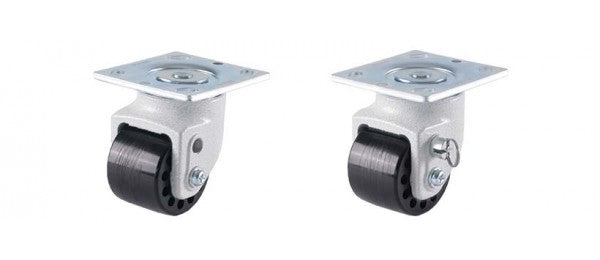

● Model
ㆍGLH-75-ASF-NYD-PUS(Swivel)
ㆍGLH-75-BSF-NYD-PUS(Swivel with brake)

View full details

Wheel Diameter	75 mm
Width of Tread	55 mm
Hardness of Tread	70 Shore D

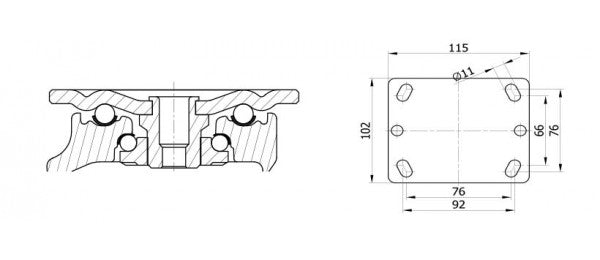

Size of Plate	115 x 102 mm
Plate Hole Centers	92 x 66 or 76 x 76 mm
Plate Hole	11 mm
Offset	25 mm
Overall Height	113 mm
Temperature	-10 ~ +90 ℃
Load Capacity / 1pcs	750 kg
Load Capacity / 4pcs	2,250 kg
